PWC Lift
$590.13 - $760.68
Description
Patriot Docks Simple PWC Jack Lift – Reliable Jet Ski Storage, Single or Double

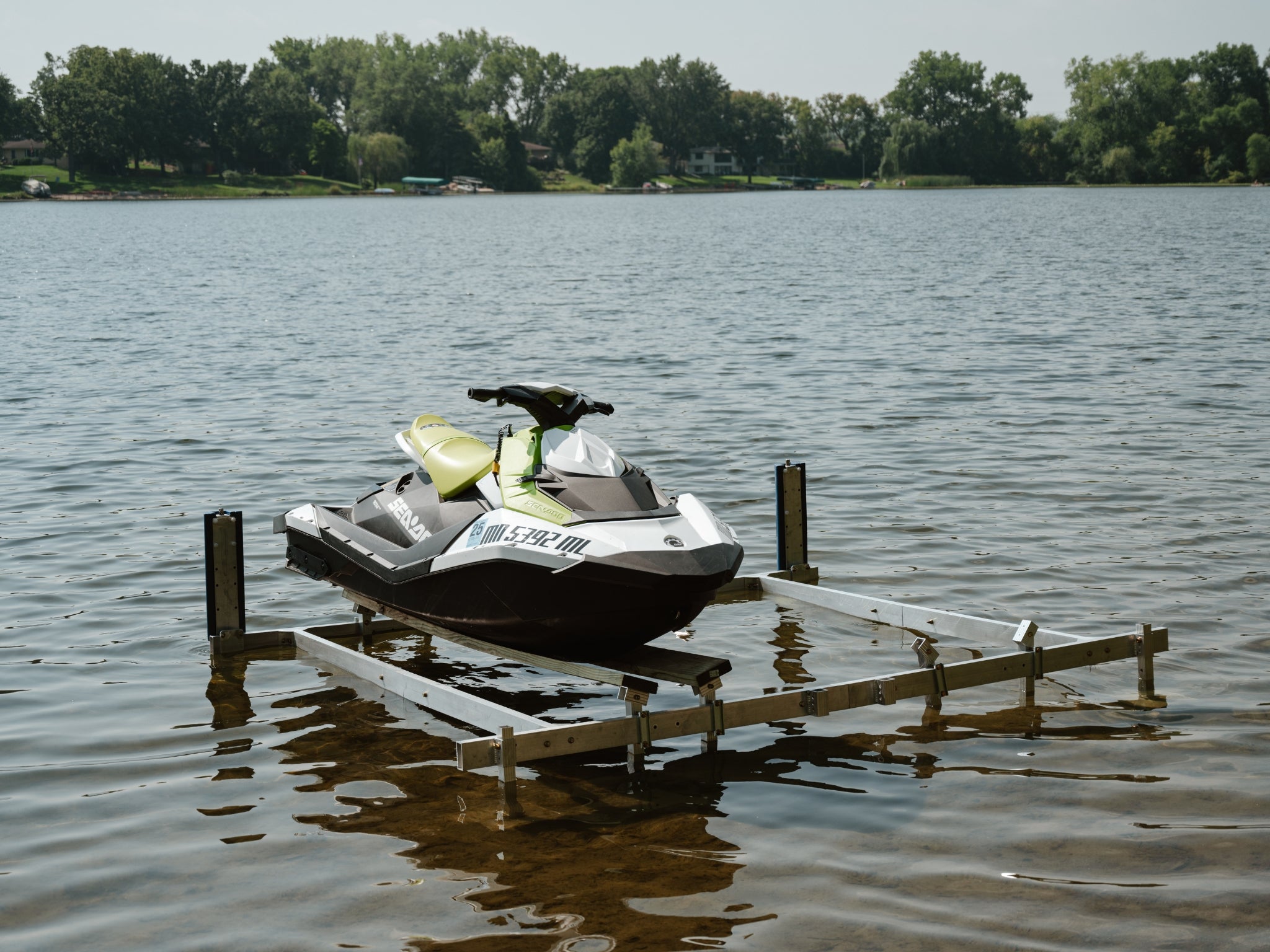

The Patriot Docks Simple PWC Jack Lift is a no-nonsense, cost-effective solution for safely raising and storing your jet ski or personal watercraft. Designed with strength, simplicity, and long-term durability, this manual jet ski lift eliminates the hassle of cables and pulleys found in traditional systems. Whether you're lifting one or two jet skis, this system delivers dependable performance with minimal maintenance.

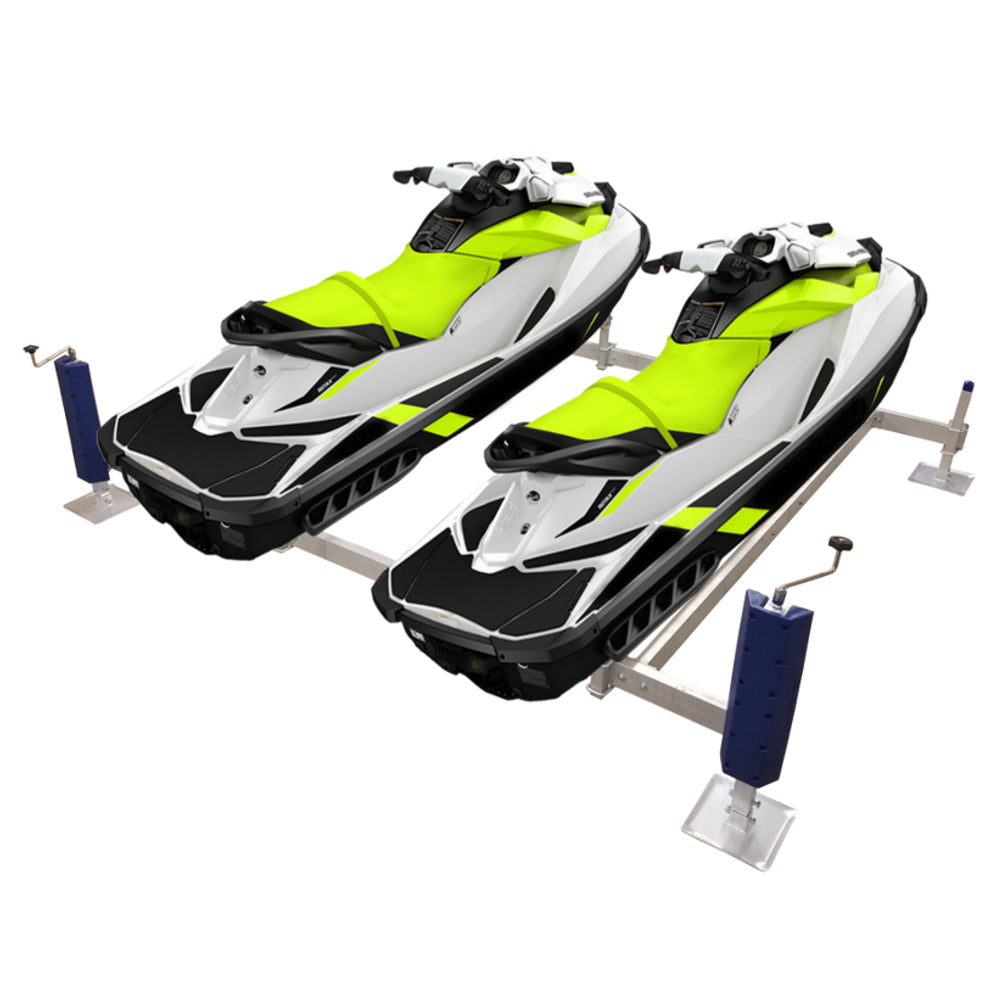

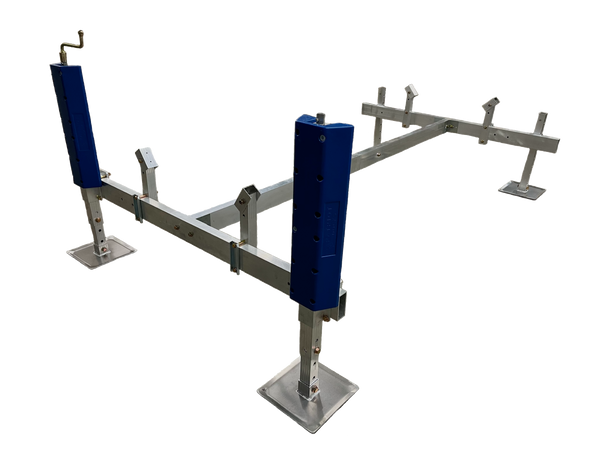

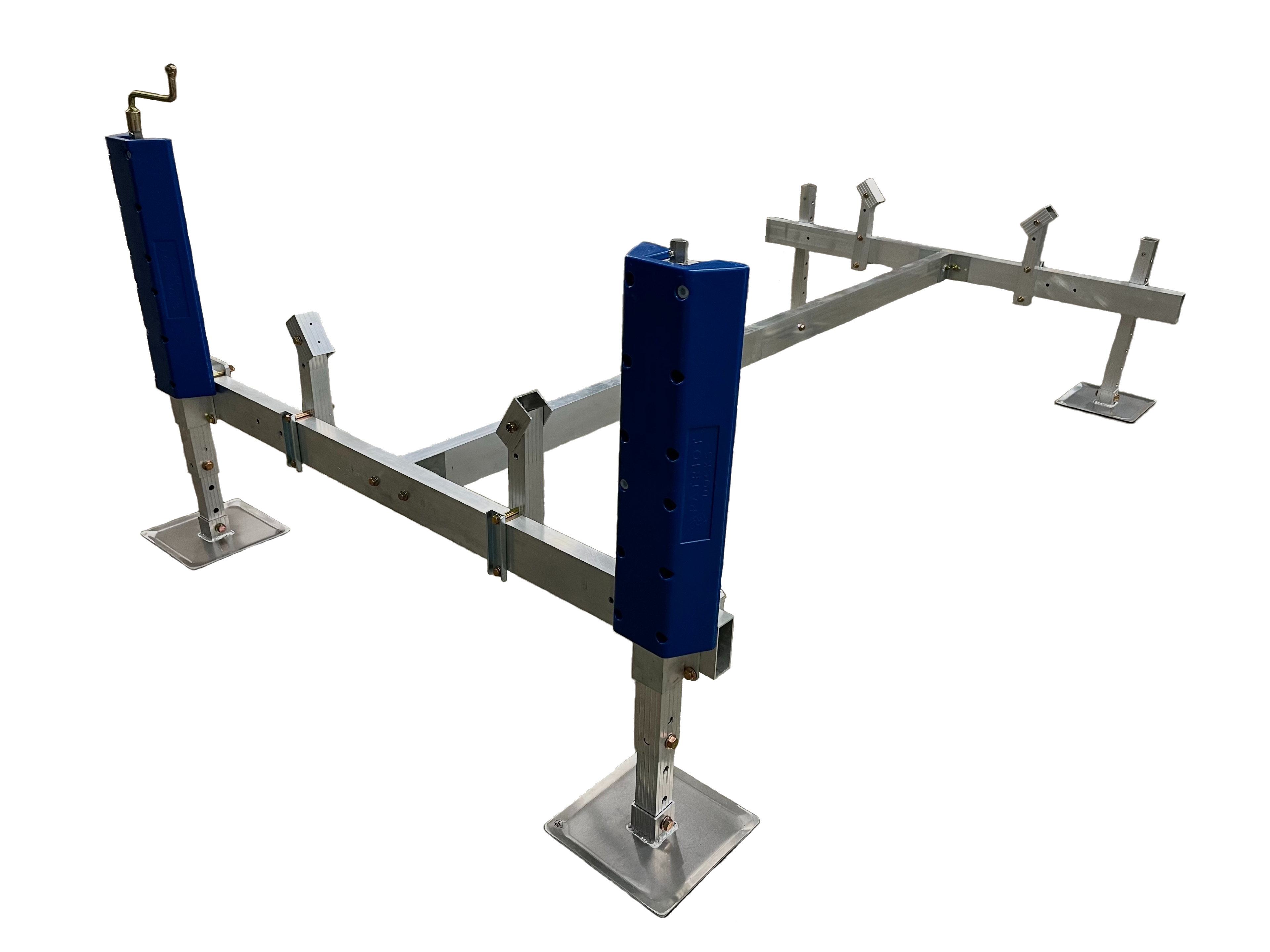

Built from marine-grade aluminum and powered by a manual screw jack system, it’s the perfect choice for residential and light commercial waterfronts. Choose between the Single PWC Lift (1200 lb capacity) or the Double PWC Lift (1600 lb capacity) depending on your needs. Alternate watercraft options work within the weight and beam specifications.
Each lift includes multiple points of adjustment to fit your unique shoreline setup—the jack mounting position, screw jack travel, and drop leg height can all be fine-tuned at each corner for maximum versatility and stability.
Raise your watercraft directly from the seated position using the included manual crank handle, or a cordless drill with a 3/4" socket. The internal stainless gear mechanism provides smooth, reliable vertical lift—so you can store your ski safely above the waterline without the headaches of traditional systems.
Key features include:
- Manual screw jack system – no cables, no pulleys, no hassle
- Marine-grade aluminum frame – strong, rust-resistant, and lightweight
- Multiple adjustment points for shoreline versatility
- Drill or crank operation for smooth and simple lifting
- Compact shipping and easy assembly
What’s included:
- Marine-grade aluminum lift frame
- (2) Lift jacks with adjustable legs
- (2) Drop legs for lake end

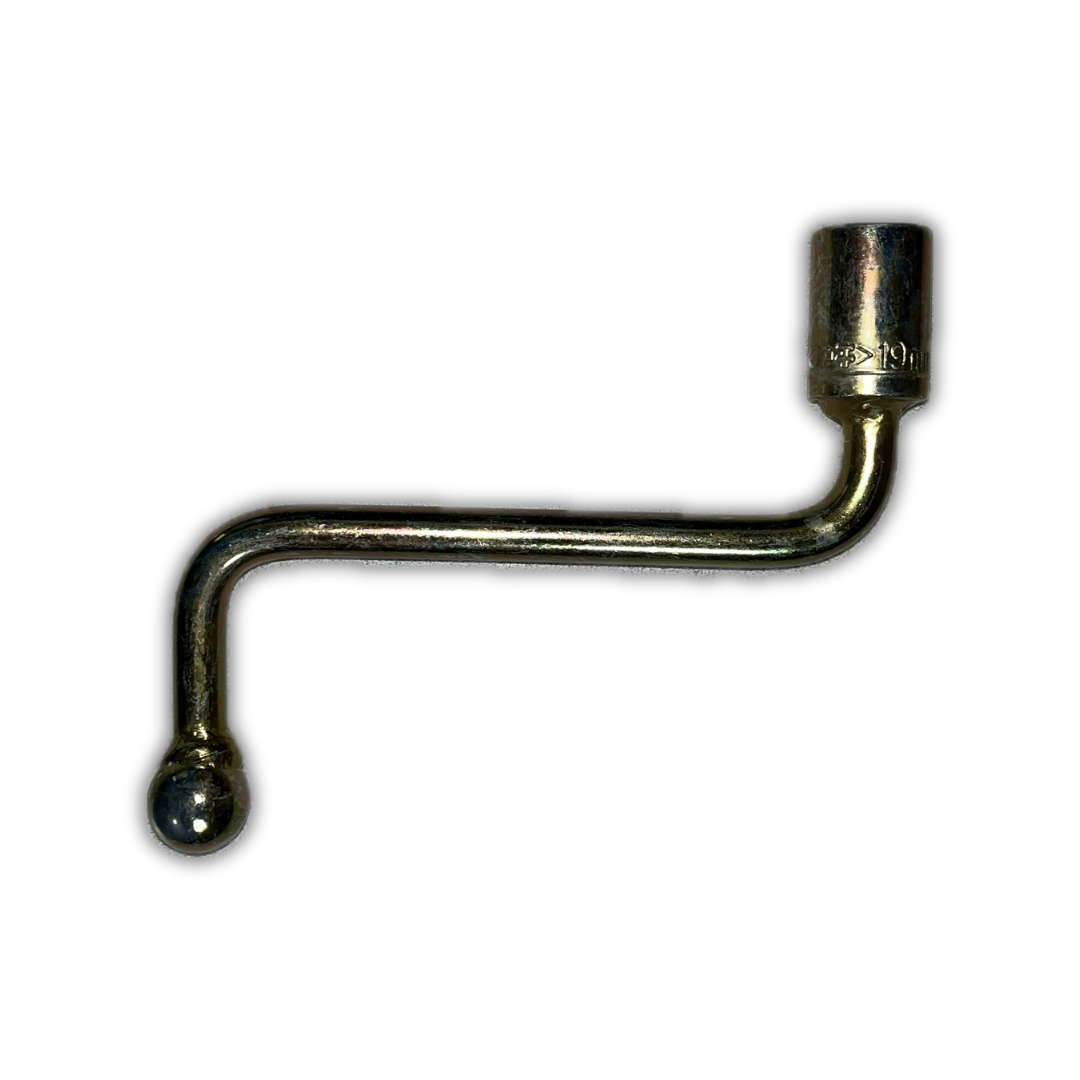

- (1) Crank handle
- Bunk upright hardware

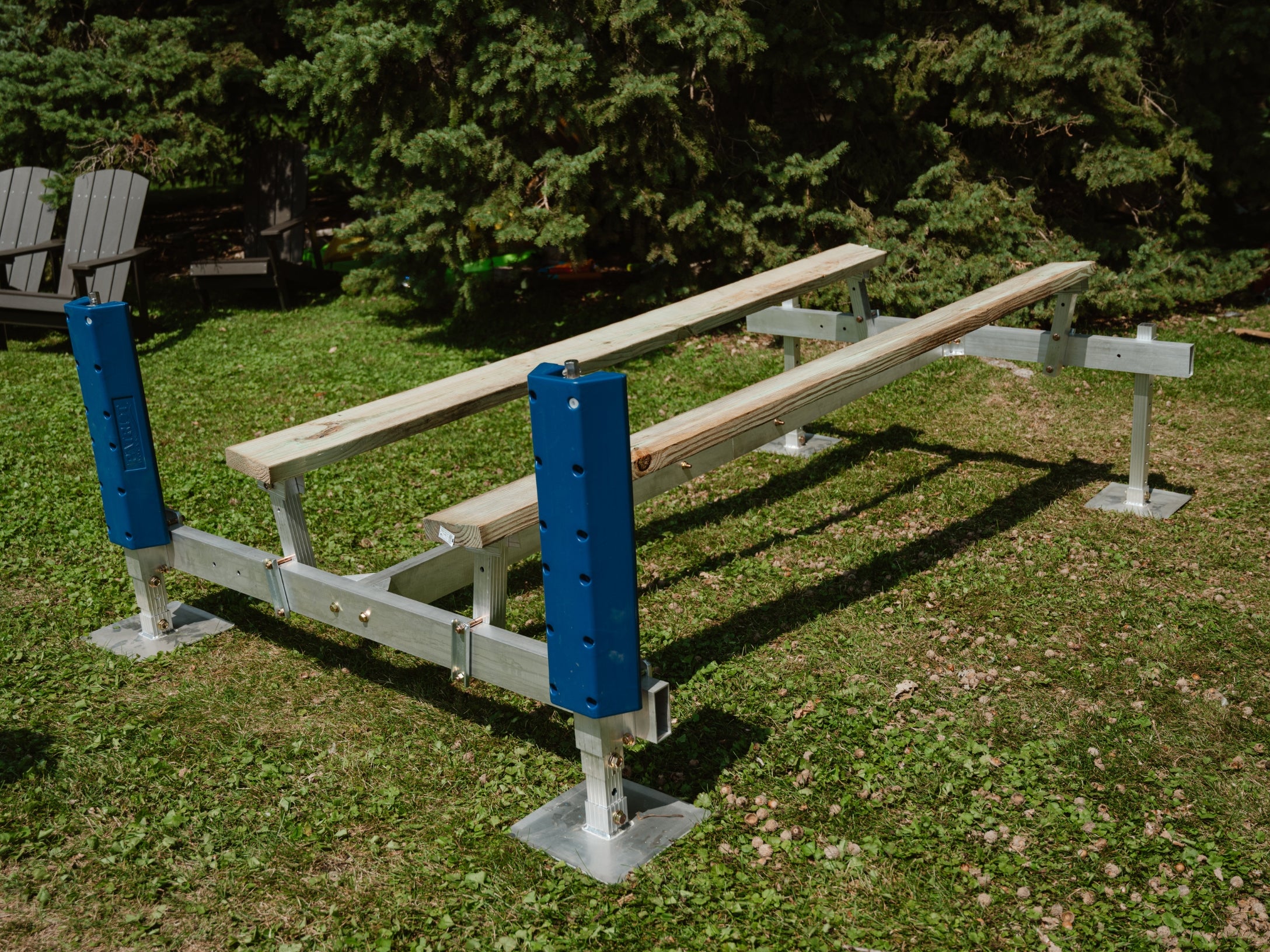

Note: 8' bunk boards are not included; users supply their own.
Specifications:

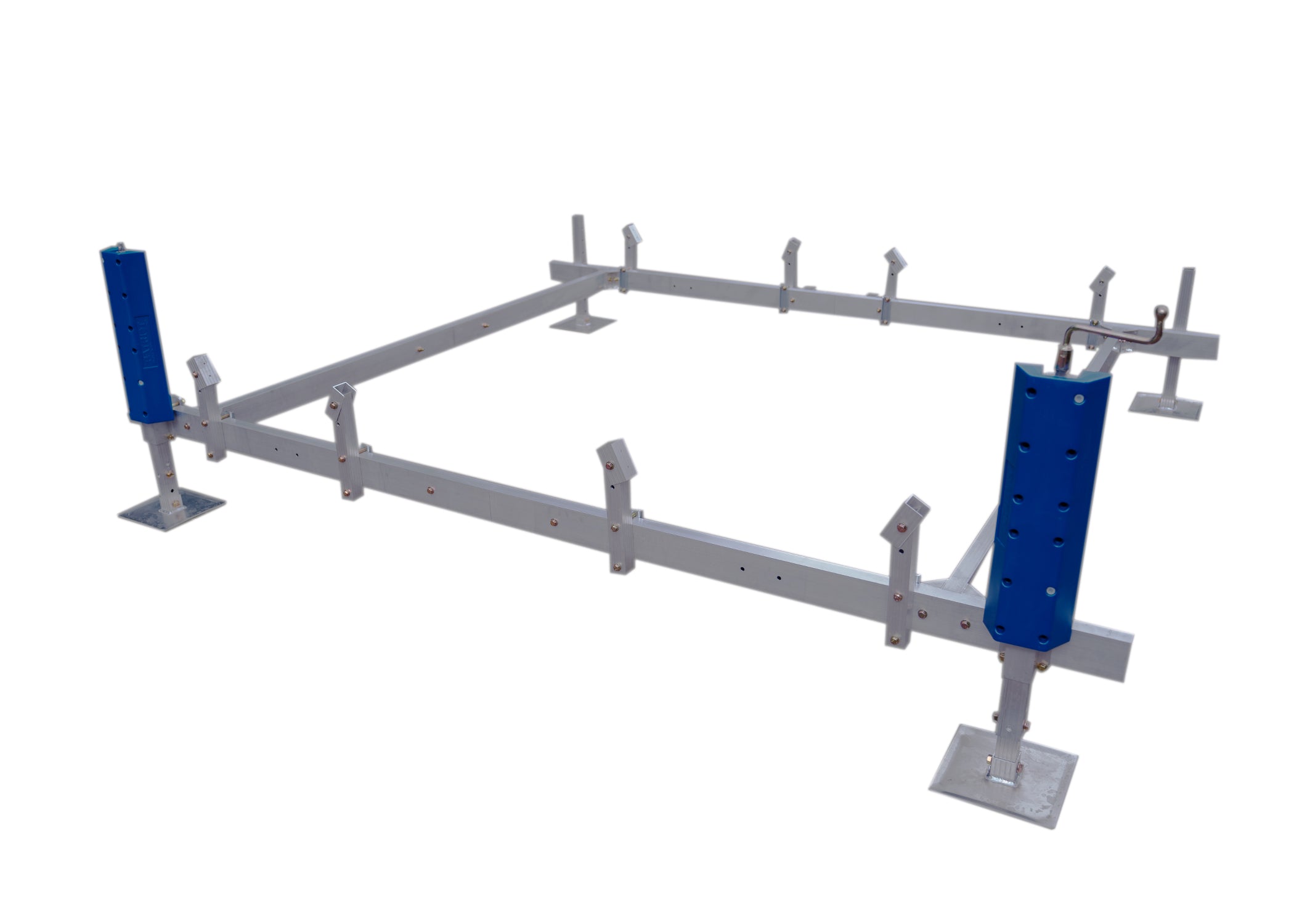

- Dimensions: 10 ft wide x 8 ft long (Double); approx. 60" beam on Single version
- Weight capacity: 1600 lb (Double), 1200 lb (Single)
- Jack travel: 18" vertical lift
- Shore-end leg range: 4" to 20" (pre-install)
- Lake-end height: Adjustable from 6" to 46"
How it works:
- Lower the jacks and guide your jet ski into position

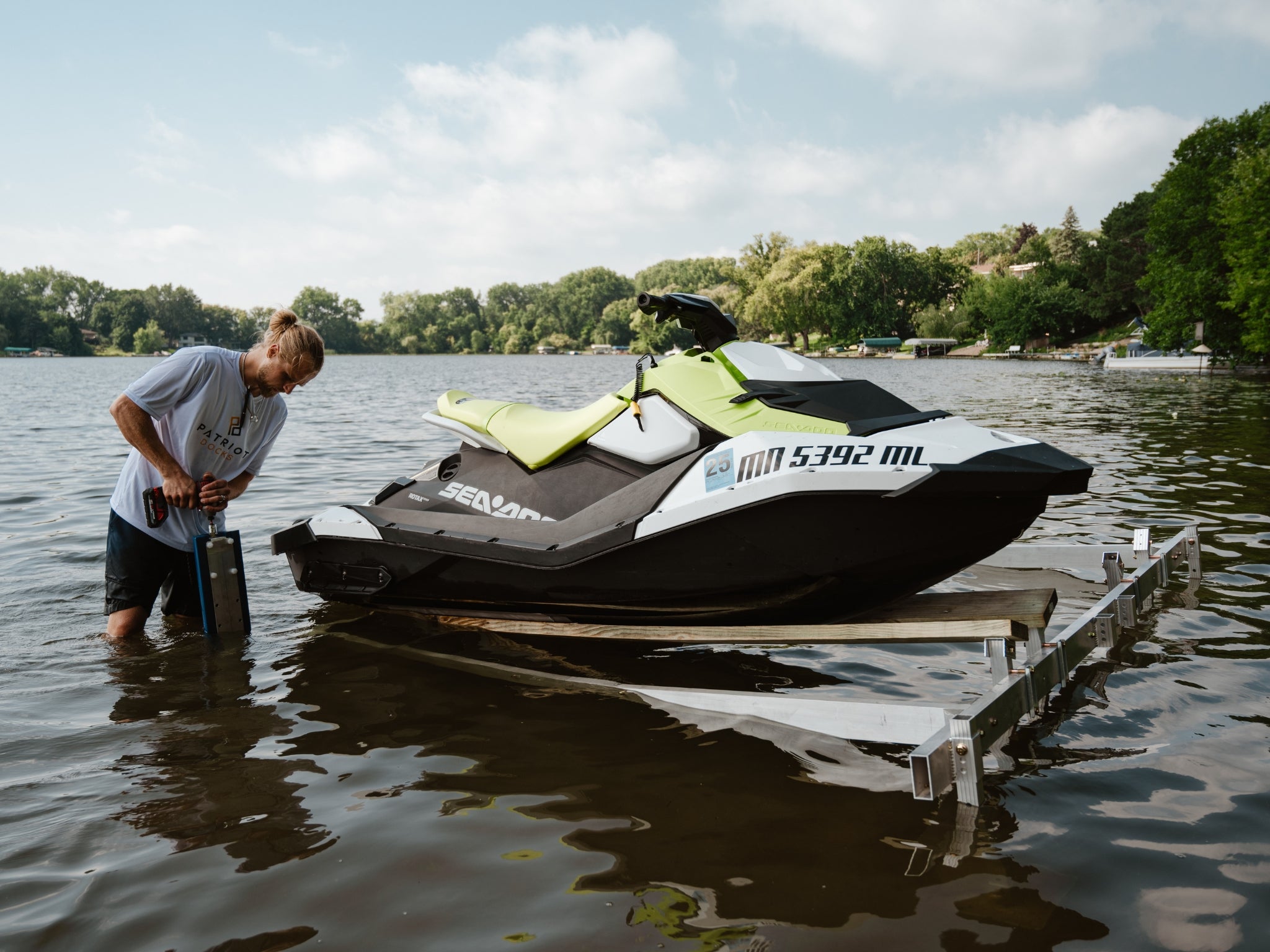

- Crank the jacks while seated on the ski using the handle or a drill
- Internal stainless gear provides smooth vertical lift
- Store your ski safely above the waterline
Ships directly to your door in a compact box. Easy to assemble, easier to use—this is a jet ski lift built for convenience and peace of mind.
Crafted for connection, built for you—Patriot Docks PWC Lifts make jet ski storage simple and affordable. Treasure your time on the water with a lift that keeps things safe, accessible, and stress-free from launch to lift-off.
