Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock
Double Patio Low Profile Floating Dock

Double Patio Low Profile Floating Dock

$3,739.01 - $12,687.93

Maximum Stability. More Space to Enjoy. The Patriot Docks Low Profile Floating Dock – Double Patio offers the best of both worlds: a rugged, all-aluminum floating dock system with the added width and balance of a twin-deck platform. Whether you're entertaining, fishing, or launching paddlecraft, this expanded layout gives you enhanced stability, more surface area, and a built-in seating or gathering zone. Designed for deep water, muddy bottoms, and fluctuating lake levels, this system delivers dependable performance where post docks just won’t work.
Sale price $3,739.01

SKU: D-22320
Categories:

Description

Low Profile Floating Dock – Double Patio Configuration

Maximum Stability. More Space to Enjoy.

The Patriot Docks Low Profile Floating Dock – Double Patio offers the best of both worlds: a rugged, all-aluminum floating dock system with the added width and balance of a twin-deck platform. Whether you're entertaining, fishing, or launching paddlecraft, this expanded layout gives you enhanced stability, more surface area, and a built-in seating or gathering zone.

Designed for deep water, muddy bottoms, and fluctuating lake levels, this system delivers dependable performance where post docks just won’t work.

Why Choose the Double Patio Layout?

  • Increased surface area for seating, storage, and recreational use
  • Wider platform enhances dock stability in all conditions
  • Perfect for entertaining, sunbathing, or launching multiple watercraft

Key Features

  • Low Profile frame keeps you close to the water for easy access
  • Foam-filled float drums ensure leak-proof buoyancy and support
  • Modular bolt-together frames make expanding or reshaping easy

The dock flexes with movement thanks to hinges every 16′, while the included 8′ shore ramp creates a seamless approach from land to water.

What’s Included in the Double Patio Package:

  • 8′ aluminum ramp to the shoreline
  • 4′ x 8′ aluminum dock frames (two forming the “patio” wings)
  • Foam-filled floats (24″ x 48″ x 12″)
  • Drop-in 4′ x 4′ decking panels
  • (4) Piling sleeves for anchoring
  • Hinges every 16′ for flexibility
  • Complete hardware set for full assembly

(Anchoring system not included. Compatible with pilings, cables, or anchor weights.)

Customize to Fit Your Needs

With our DIY Floating Dock Sections, the Double Patio layout is just the beginning. Add more platforms, create unique shapes, or extend your dock over time—no specialized tools required.

Spacious. Stable. Built to Perform.
The Low Profile Double Patio Dock is perfect for families, lakefront entertaining, or anyone who needs more room on the water.

Specifications

FRAME:

  • Weight per frame: 57 pounds
  • Frame Height: 4 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: Low Profile
  • Frame Build: Bolt-together
  • Hinge Span: Every 16 feet

FLOAT:

  • Float Material: High-Density Polypropylene
  • Foam-filled: Yes
  • Float Dimensions: 48x24x12
  • Float Capacity: 390 pounds

STABILITY FLOATS:

  • Float Material: High-Density Polypropylene
  • Foam-filled: Yes
  • Float Dimensions: 47-1/4" x 13-1/2" x 6-3/4"
  • Float Capacity: 145 pounds

DECKING:

  • Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 37 pounds

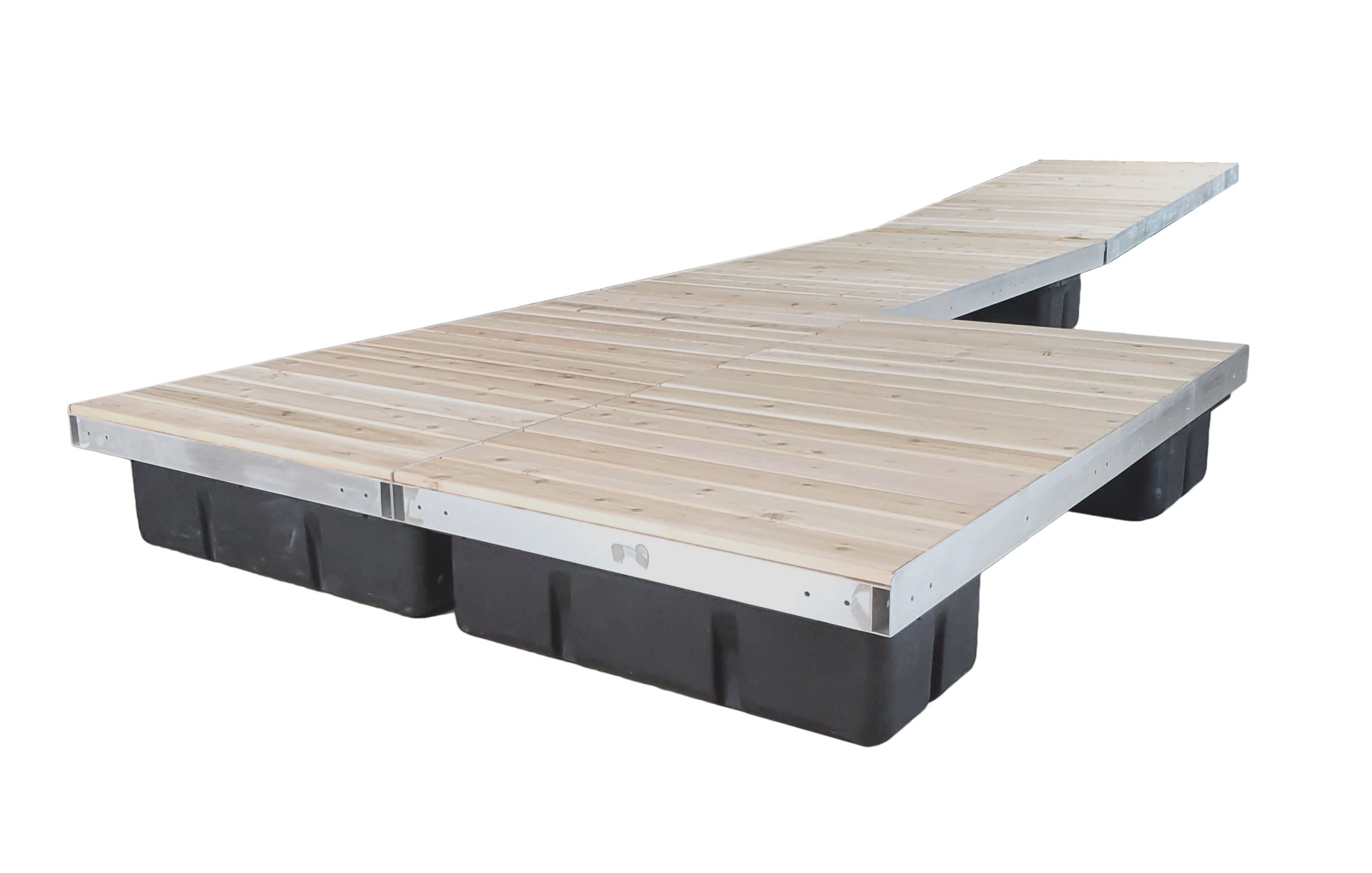

  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds

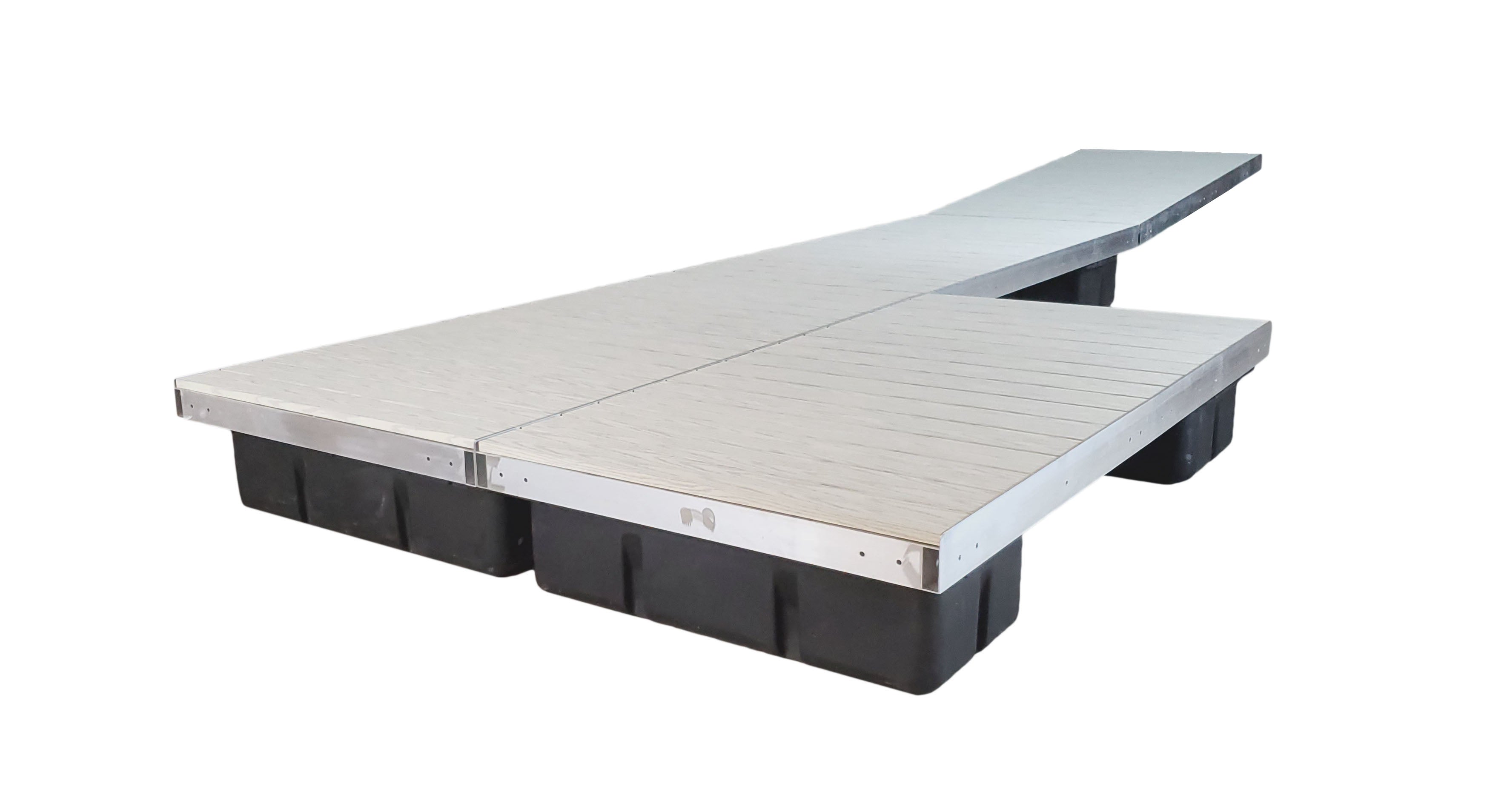

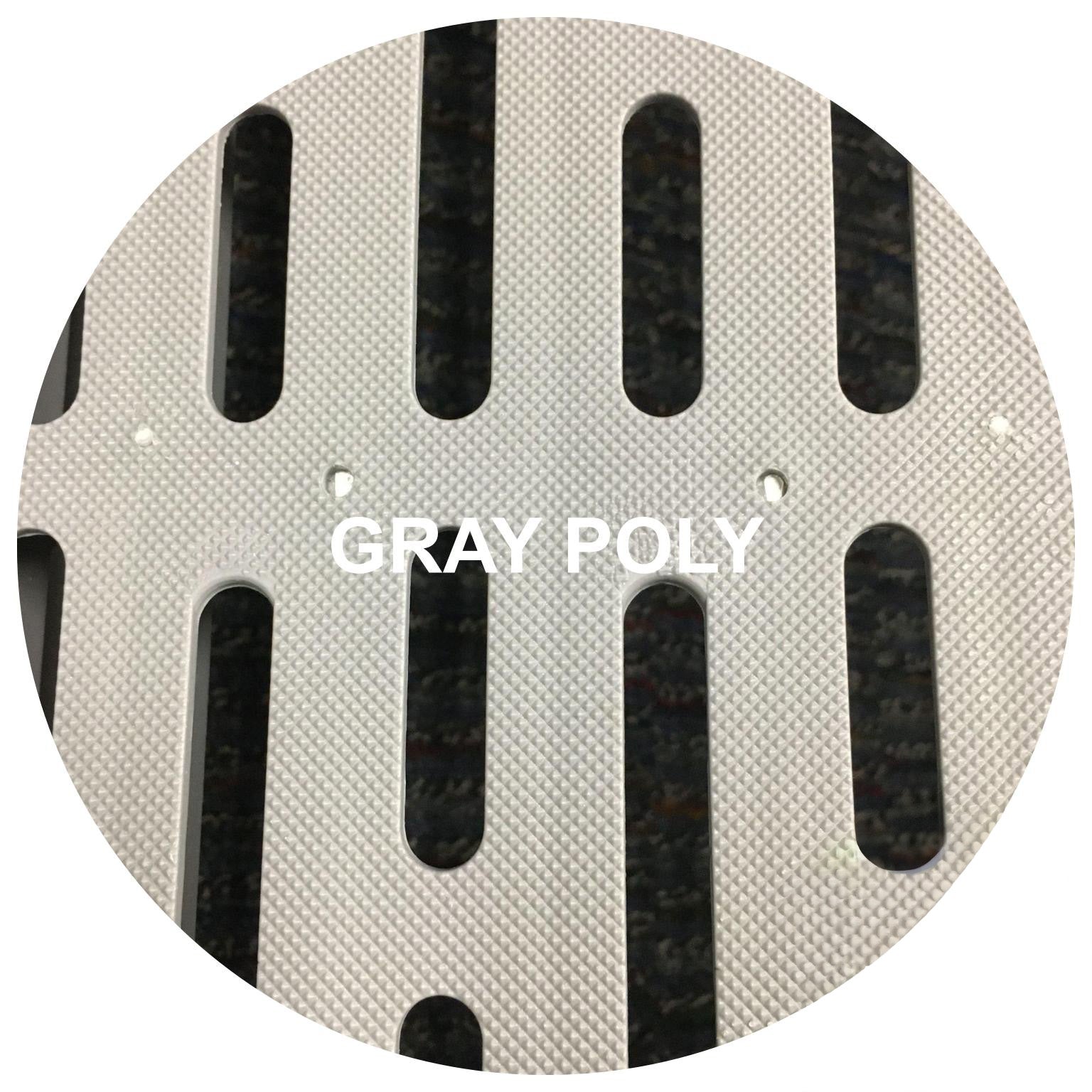

  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds

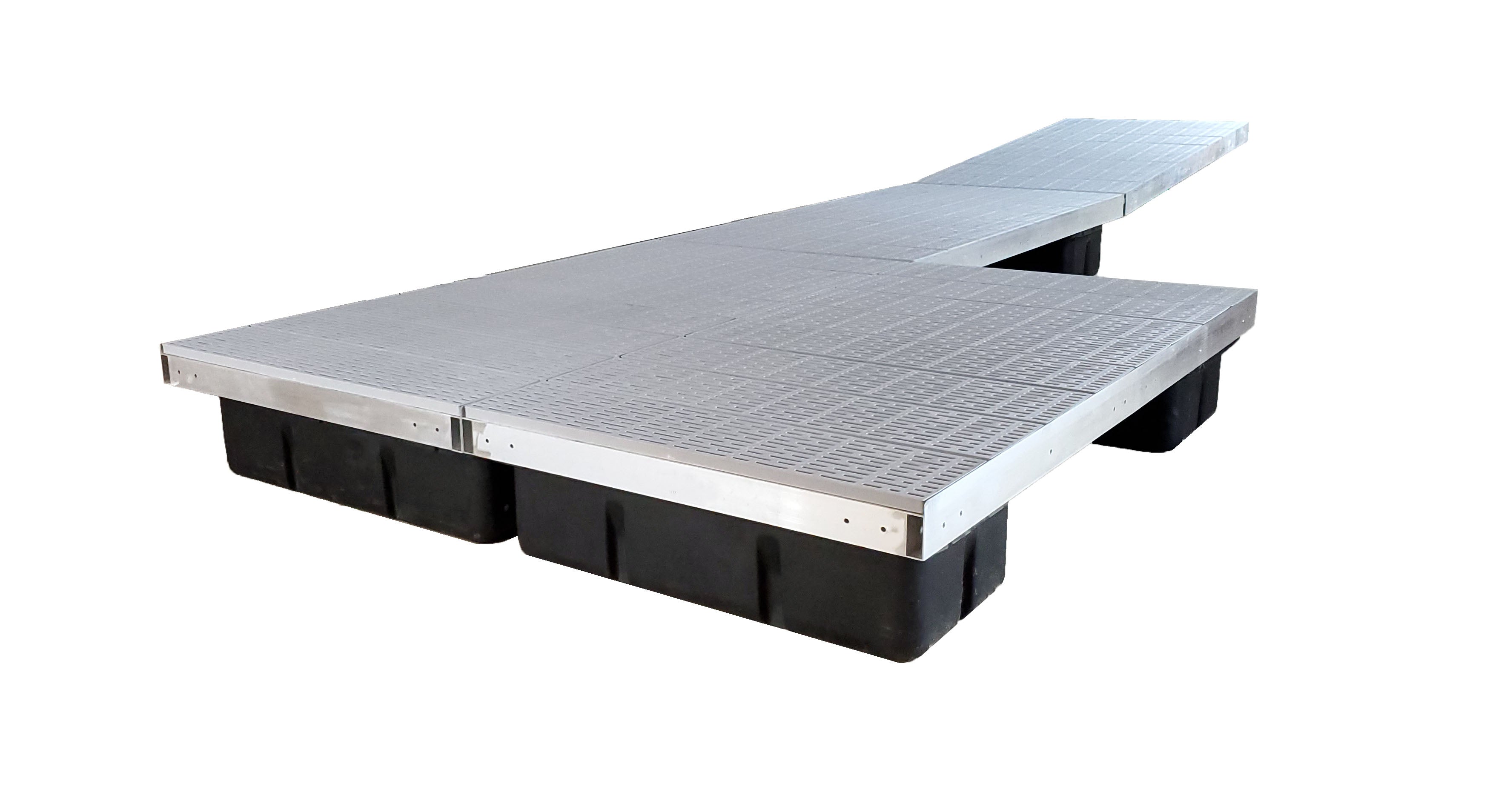

  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Screwed Stringers, Powder Coating, and Wood Grain Finish

HINGE:

  • Hinge Material: Aluminum
  • Hinge Dimensions: 48x1 inches
  • Articulation Range: 92″ up (74°) and 48″ down (31°) from Dock Surface

HARDWARE:

  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8" or 1/2"

Features

DOCK FRAMES: Lightweight (57lbs with floats); Low profile (4" tall, easy watercraft access); No-rust aluminum; Bolt-together sections; Modular (bolt or hinge one frame to the next); Nests decking (frames in drop-in decking panels)

FLOATS: Foam filled for leak protection; 780-pound buoyancy rating per platform; Large plastic drums (12" tall); Easy mounting to frame

STABILITY FLOATS: Extra side flotation provides 145
pounds in additional buoyancy rating per float; Plastic surface acts as a bumper; 47-1/4" x 13-1/2" x 6-3/4"

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

HINGES: Articulates to prevent tension; Large range of articulation (Articulation Range for 8ft Ramps to Low-Profile Docks: 92″ up (74°) and 48″ down (31°) from Dock Surface); Easy slide assembly

DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with instruction video and step-by-step PDF; Each Floating Dock package comes with 4 Anchor Brackets

Layout
