Patio Roll-in Pipe Dock

$2,339.06 - $9,508.69

Patriot Docks delivers strength, space, and simplicity with the Patio Rolling Pipe Dock. This popular configuration includes a side-mounted patio platform—perfect for seating, lounging, docking, or just spreading out on the water. Whether you're entertaining guests or parking multiple watercraft, the patio setup adds usable dock space where you need it most. Engineered for serious performance, Patriot Docks feature the tallest aluminum truss frames on the residential market. At 13" tall, these frames provide outstanding rigidity and build trust in challenging conditions, from soft lake bottoms to deeper, rougher waters.

Sale price $2,339.06

SKU: 10560

Description

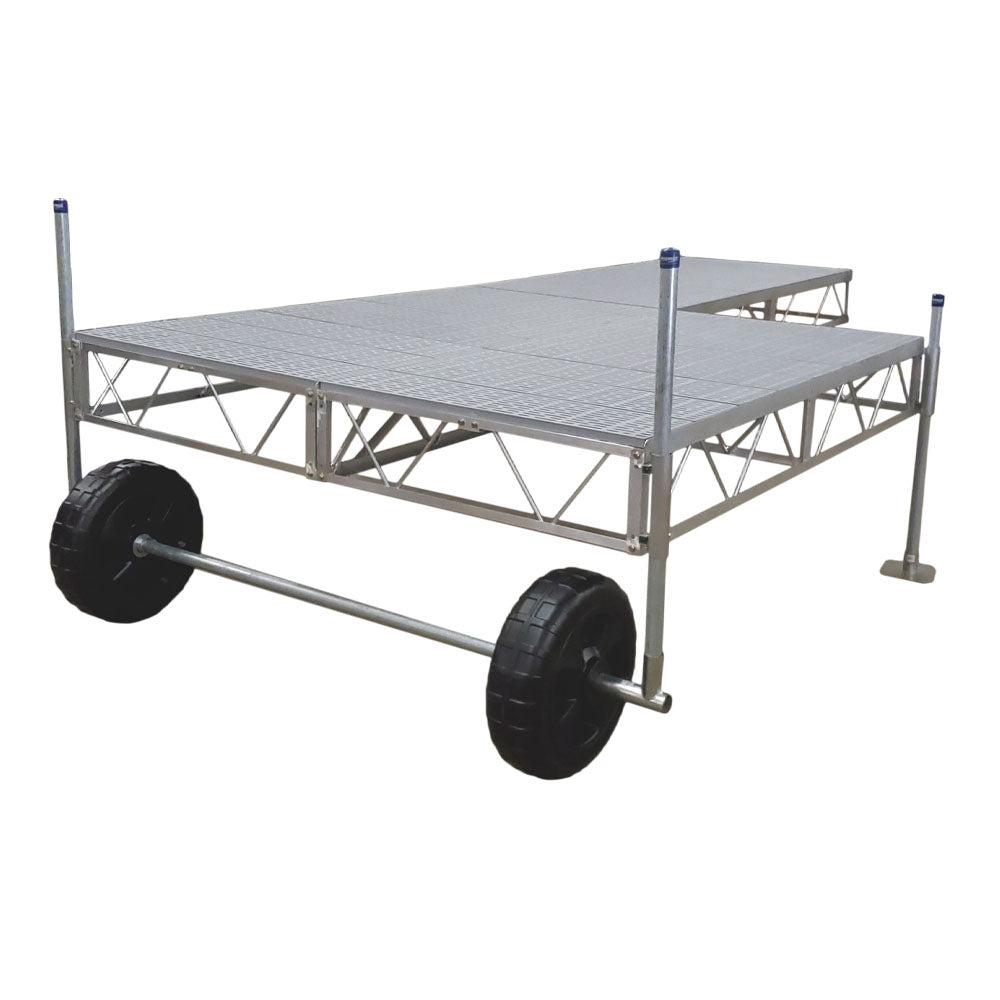

Patio Roll-in Pipe Dock – Where Muscle Meets Mobile

Patriot Docks delivers strength, space, and simplicity with the Patio Roll-in Pipe Dock. This popular configuration includes a side-mounted patio platform—perfect for seating, lounging, docking, or just spreading out on the water. Whether you're entertaining guests or parking multiple watercraft, the patio setup adds usable dock space where you need it most.

Engineered for serious performance, Patriot Docks feature the tallest aluminum truss frames on the residential market. At 13" tall, these frames provide outstanding rigidity and build trust in challenging conditions, from soft lake bottoms to deeper, rougher waters.

Why Choose the Patio Dock?

  • Patio extension adds functional space for seating, storage, or boat access
  • Increased cross-stability on wide open water or uneven terrain
  • Enhanced layout for recreation, docking, or relaxing

Key Features

  • 13″ aluminum truss frames – the tallest and most rigid available

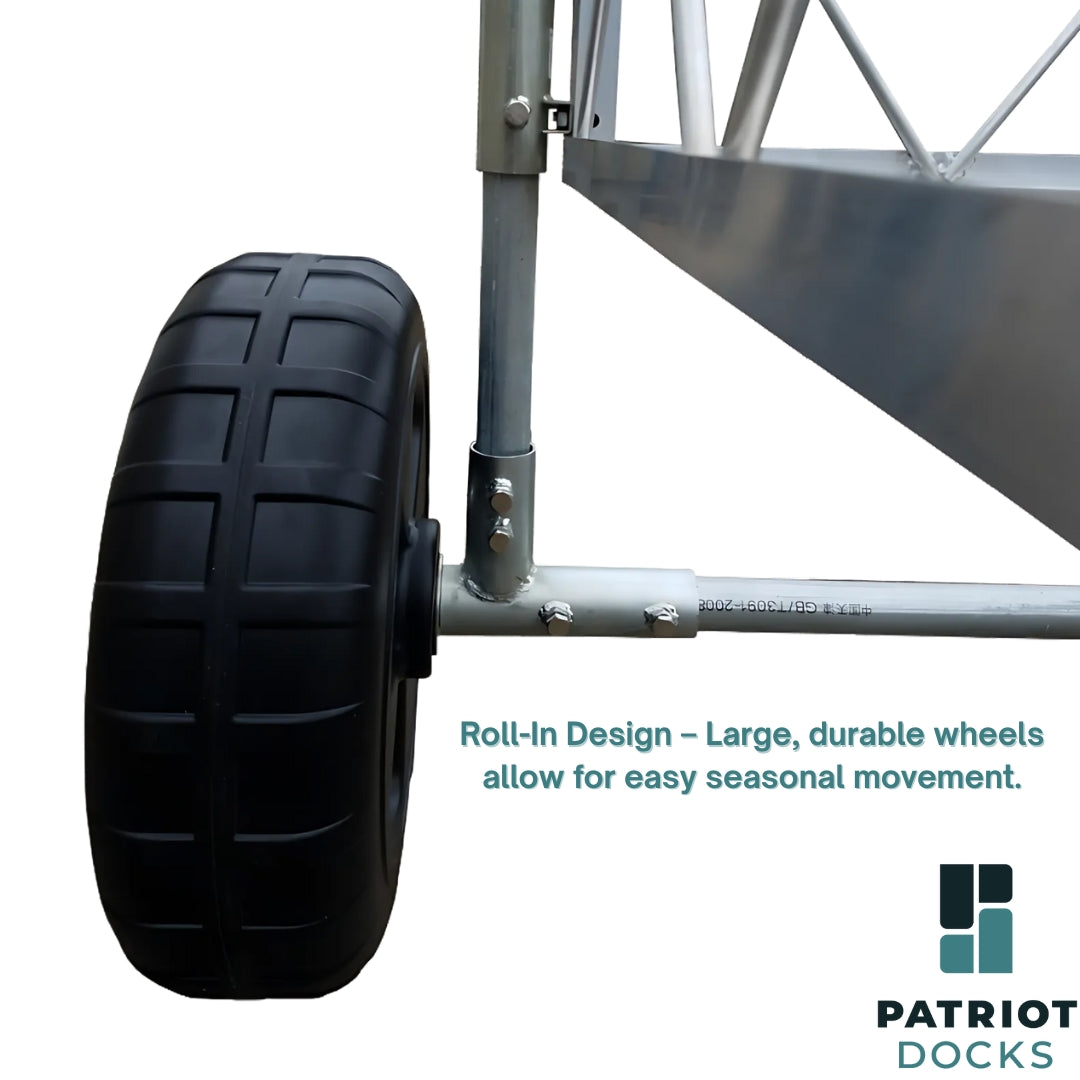

  • Roll-in wheel system – easy movement over sand, muck, or rock
  • Galvanized pipe supports with axle bracing – strong, stable, and rust-resistant
  • Modular bolt-together design – reconfigure or expand as needed
  • Drop-in decking panels – transport docks without decking, then drop panels in place
  • Dual-bolt brackets – every connection is locked in tight

We offer many standard dock kits to meet a wide range of lakefront needs. Just choose your preferred layout, length, and decking option for a complete solution that ships ready to install. Need something more specific? Custom configurations are available—just contact our dock specialists and we’ll help design a dock system tailored to your shoreline.

Muscle Meets Mobile

Patriot Docks are proudly designed in the USA to meet the real-world demands of lake life. With smart engineering, rugged materials, and unmatched modularity, our docks offer the freedom to move, expand, and enjoy your waterfront your way.
Strong by Design. Smart by Nature.

Specifications

FRAME:

  • Weight per frame: 45 pounds
  • Frame Height: 12 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: 13" Truss
  • Frame Build: Bolts Together
  • Support Span: Every 16 feet

PIPE:

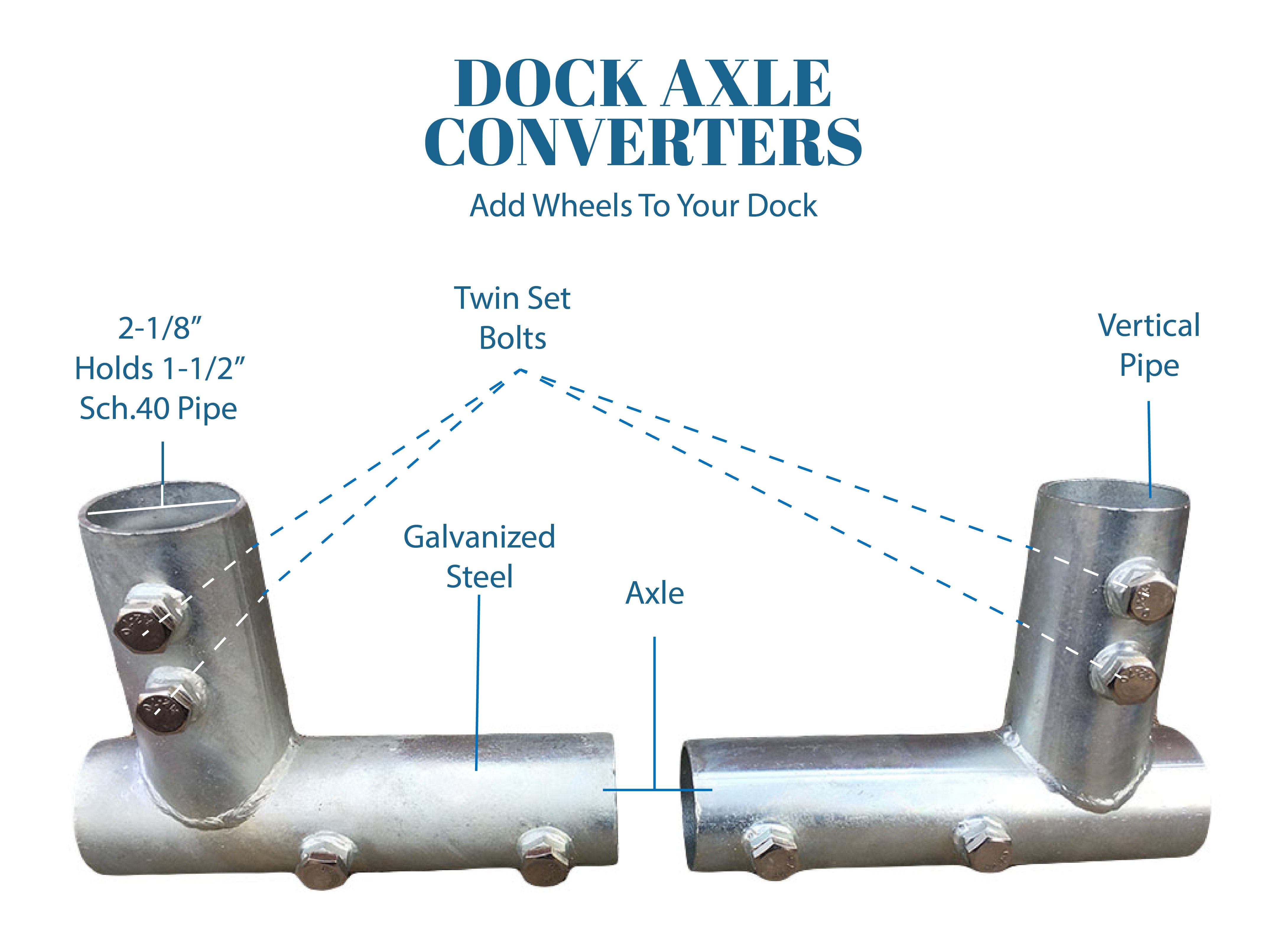

  • Bracket Material: Steel
  • Bracket Adjustment Style: Loosen 1/2 inch Dual Set Bolts and Manually Lift or Lower Frame then Tighten Bolts
  • Bracket Pipe Accommodates 1-1/2" Sch40 Pipe
  • Pipe Material: Galvanized Steel
  • Pipe Size: 1-1/2" ID Sch40 Pipe
  • Pipe Weight Capacity: 1000 pounds/each

DECKING:

  • Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 37 pounds

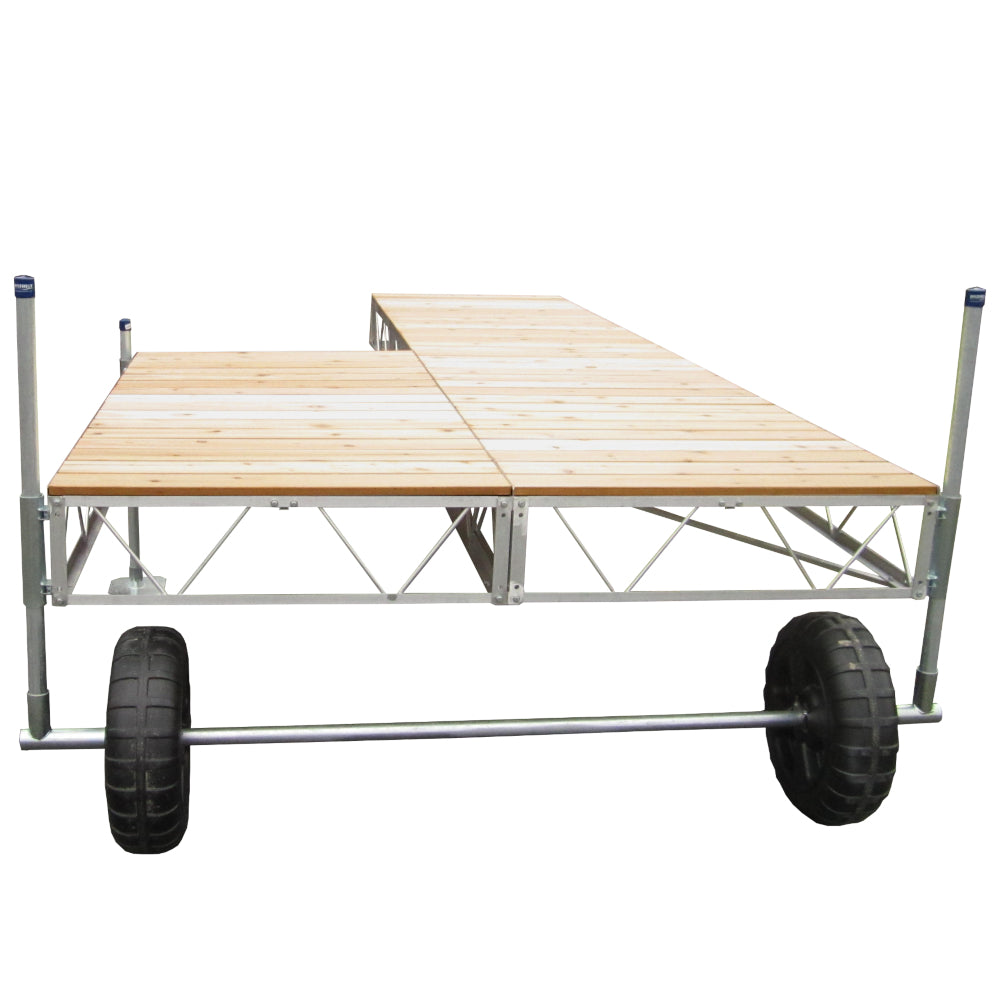

  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds

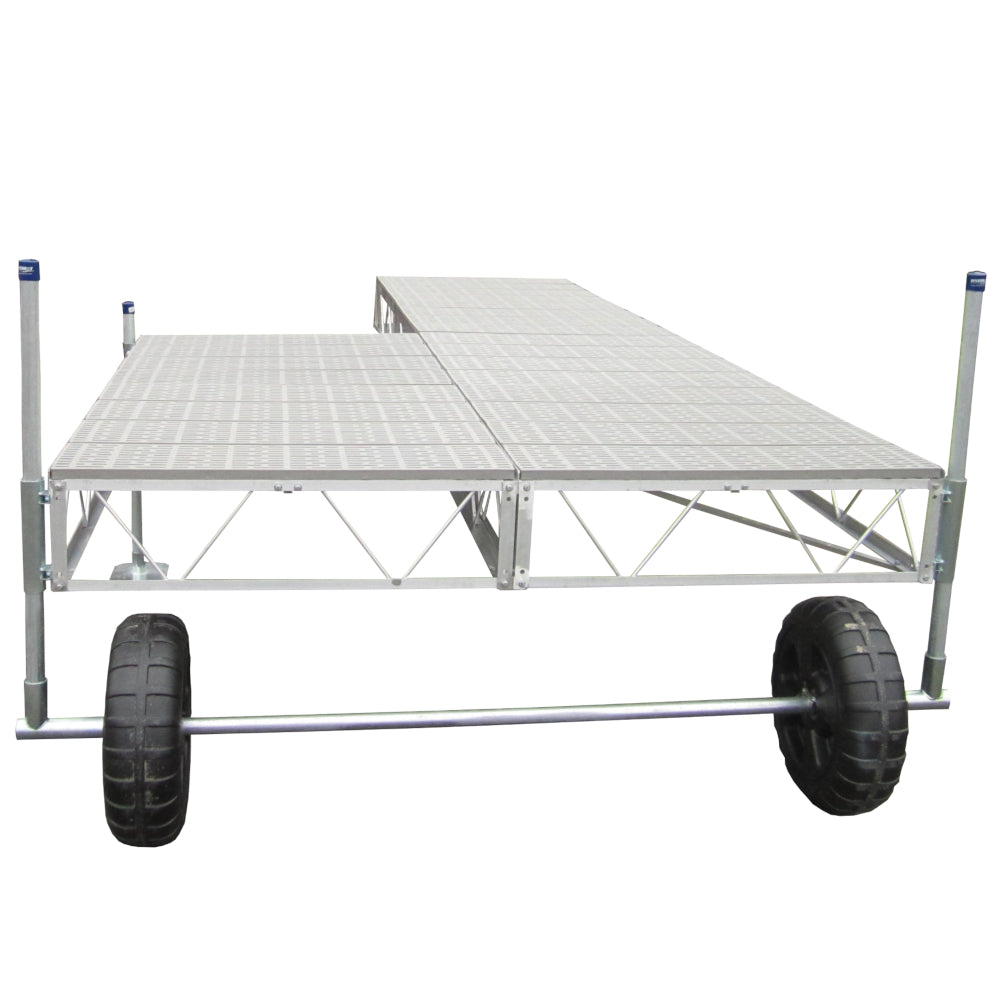

  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds

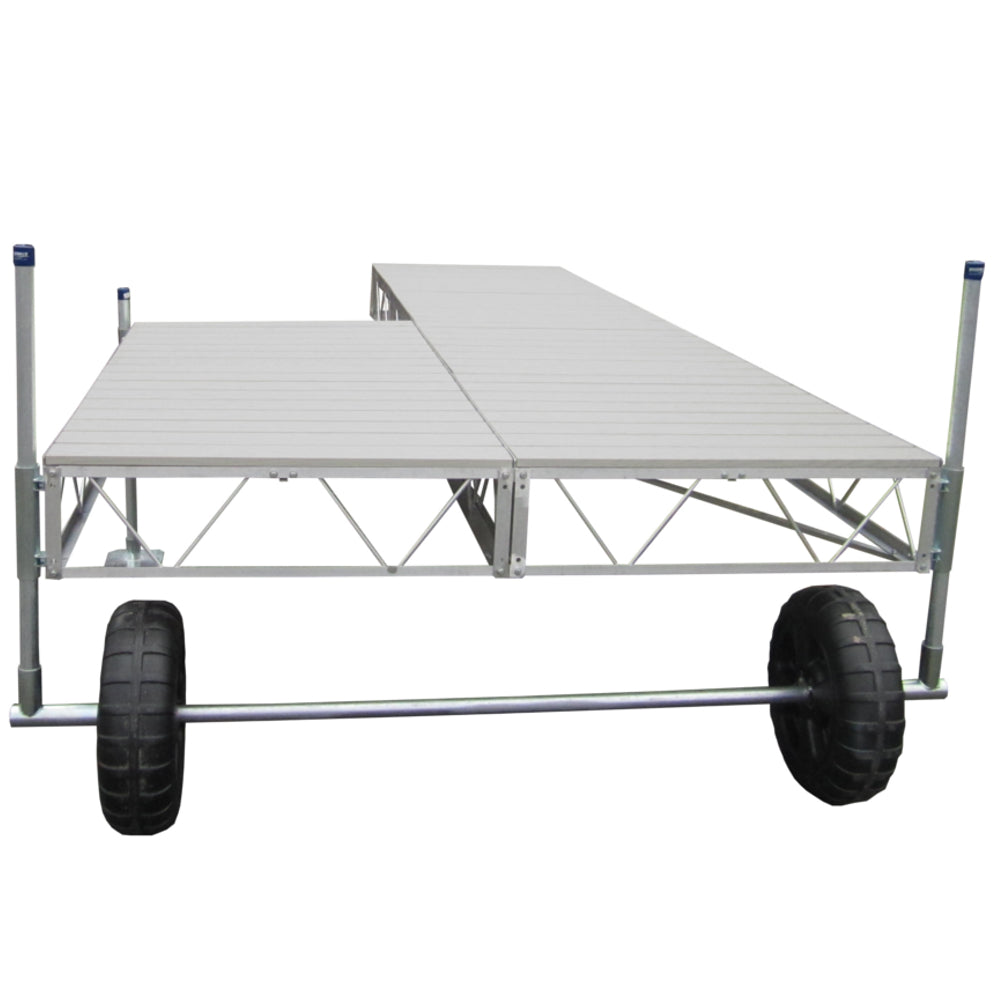

  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Screwed Stringers, Powder Coating, and Wood Grain Finish

WHEEL:

  • Wheel Material: High Density Polypropylene
  • Wheel Diameter: 24 inches

HARDWARE:

  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8" or 1/2"

Features

DOCK FRAMES: Lightweight (45lbs); Strong truss (13"
tall, 5" taller than industry average); No-rust aluminum; Modular (bolt together assembly); Nests decking (frames in drop-in decking panels)

PIPE SUPPORTS: Strong galvanized steel pipes; Dual
set bolt locking for safety; Projects above dock for handle support or solar lighting; Fully manually adjustable; Protective pipe cap; Large foot pad

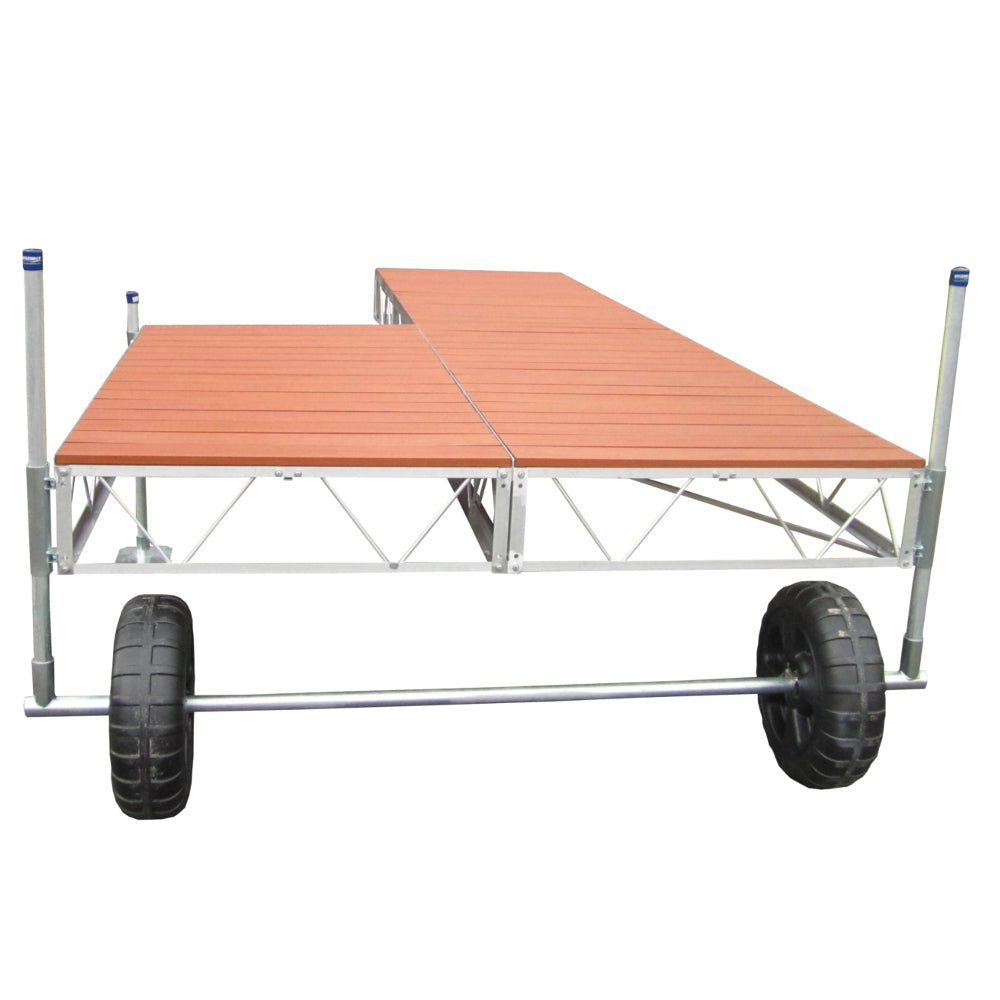

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

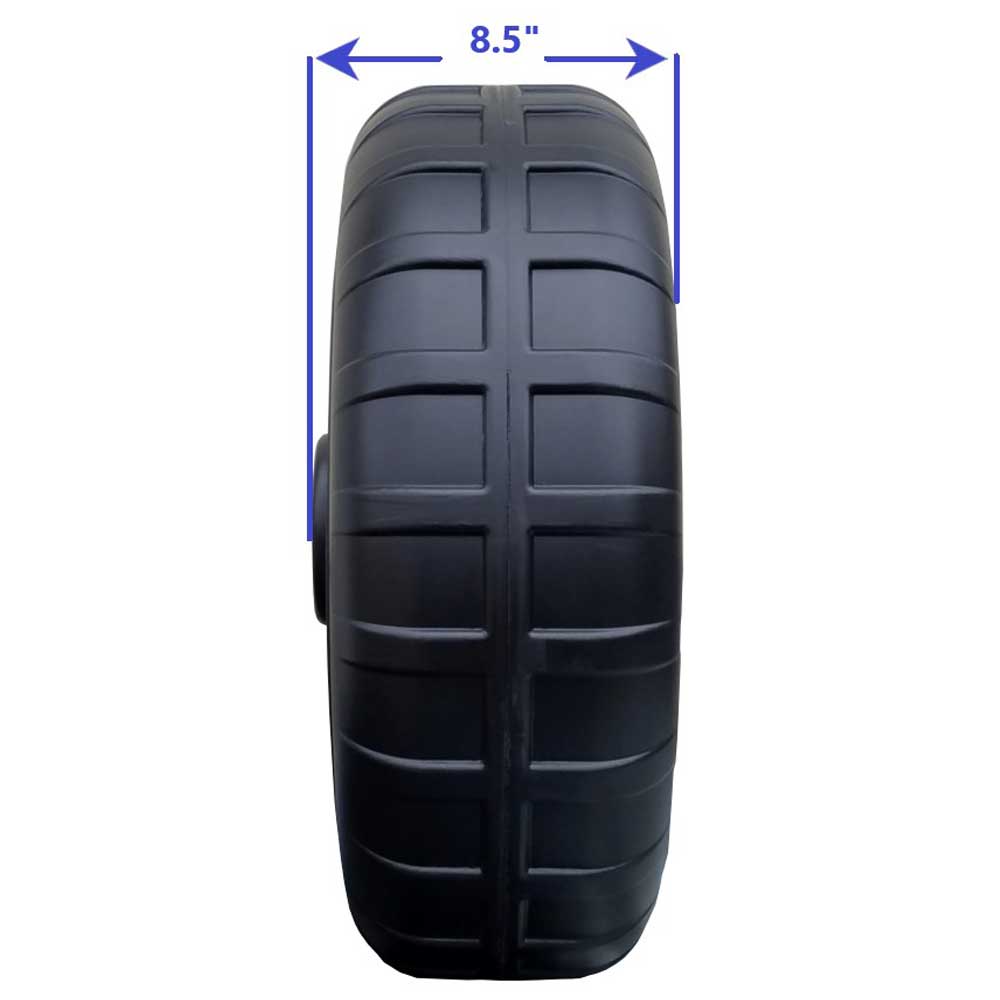

WHEELS: Heavy duty polypropylene; 24" All-terrain;
Sinks and fills with water for stability; Wide 8-inch tread; Moveable to middle or end of dock; Strong full axle

DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with instruction video and step-by-step PDF

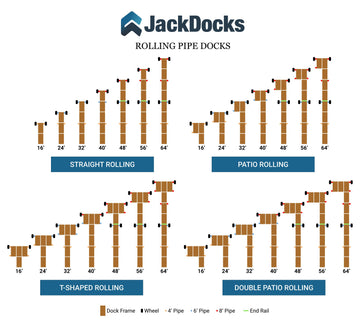

Layout
