Straight Low Profile Floating Dock

$1,707.86 - $10,114.70

Simple. Complete. Built for Any Water Depth. The Patriot Docks Low Profile Floating Dock – Straight Configuration is our most straightforward, user-friendly package—perfect for deep water, muddy bottoms, or fluctuating shorelines. With no depth limitation and an aluminum frame that won’t rust, this dock is a smart, long-lasting solution for almost any waterfront. Whether you're installing at the family cabin or building a minimalist launch dock, this complete floating dock kit comes with everything you need for quick installation and effortless use—ramp, frames, decking, floats, and hinges every 16 feet.

Sale price $1,707.86

SKU: D-22120

Description

Low Profile Floating Dock – Straight Configuration

Simple. Complete. Built for Any Water Depth.

The Patriot Docks Low Profile Floating Dock – Straight Configuration is our most straightforward, user-friendly package—perfect for deep water, muddy bottoms, or fluctuating shorelines. With no depth limitation and an aluminum frame that won’t rust, this dock is a smart, long-lasting solution for almost any waterfront.

Whether you're installing at the family cabin or building a minimalist launch dock, this complete floating dock kit comes with everything you need for quick installation and effortless use—ramp, frames, decking, floats, and hinges every 16 feet.


Why Choose a Straight Dock?

  • Clean, simple layout—ideal for access or small watercraft
  • Fully modular design can be expanded or reconfigured anytime
  • Reliable stability with minimal components

Key Features

  • Low Profile aluminum frame makes water access easier—great for kayaks and canoes
  • Foam-filled floats offer peace of mind and no-maintenance buoyancy
  • Rust-free aluminum construction for long-lasting waterfront use

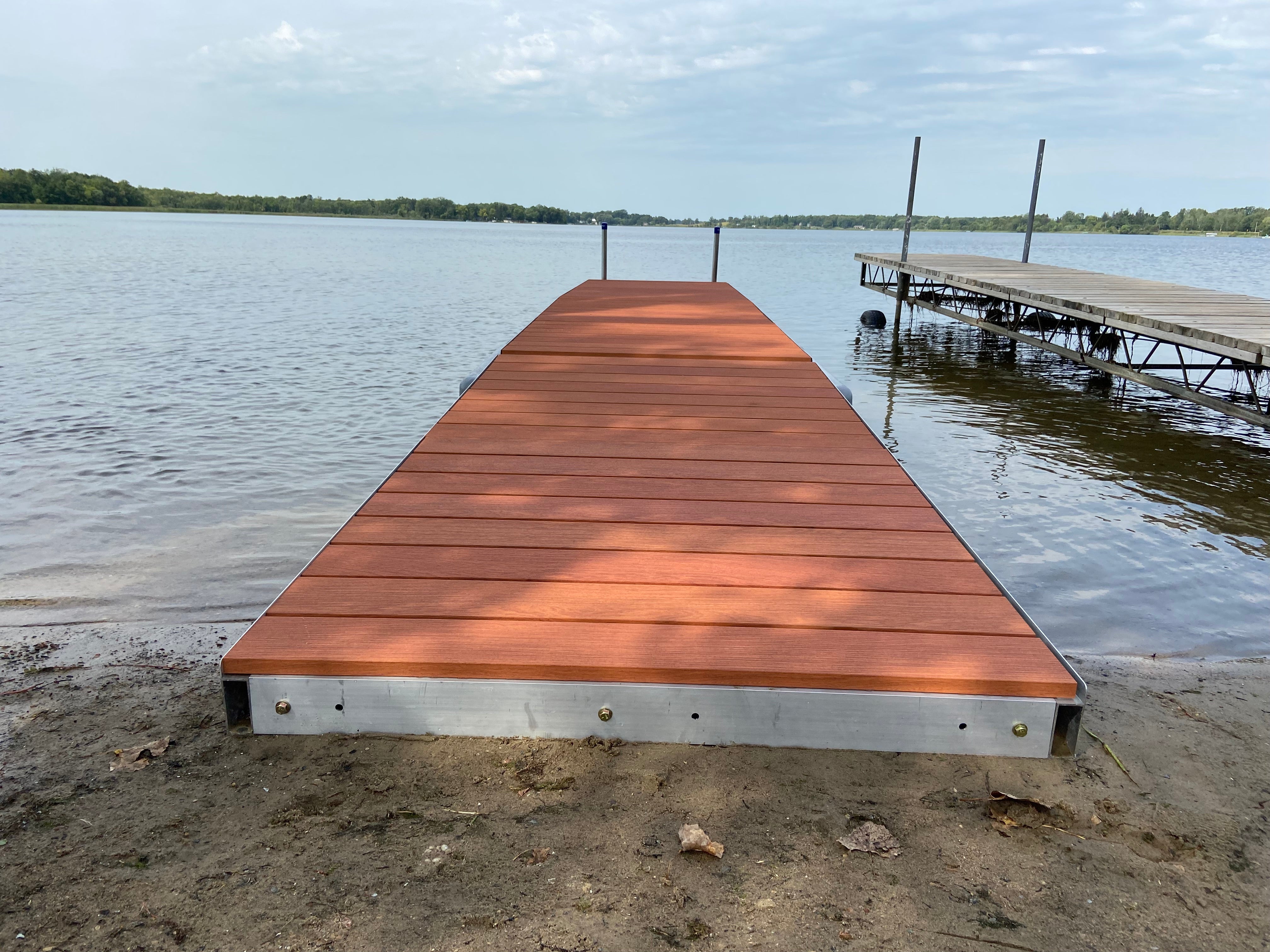

The 8′ aluminum ramp connects directly to the shoreline, giving you a smooth approach. Built-in dock hinges provide natural articulation with wave action or water level changes, while piling sleeves allow for anchoring with pilings, stiff arms, or weights.


Included in This Package:

  • 8′ aluminum shore ramp
  • 4′ x 8′ dock sections with float brackets
  • Foam-filled 24″ x 48″ x 12″ floats
  • 4′ x 4′ drop-in decking panels
  • Dock hinges every 16′
  • Piling sleeves for anchoring
  • All necessary assembly hardware

(Anchoring systems not included to allow for site-specific flexibility.)


Need more flexibility or a custom layout? Browse our DIY Floating Dock Sections to expand or modify your setup at any time.


Built for Real Waterfront Living

At Patriot Docks, we believe in building straightforward, high-quality dock systems that get the job done—year after year. Every piece is engineered for ease of use, modular flexibility, and reliability. Whether you're launching a kayak or docking a pontoon, Patriot Docks offers accessible, durable, and affordable waterfront solutions that grow with your lifestyle. Patriot Docks: Designed for Life on the Water.

Specifications

FRAME:

  • Weight per frame: 57 pounds
  • Frame Height: 4 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: Low Profile
  • Frame Build: Bolt-together
  • Hinge Span: Every 16 feet

FLOAT:

  • Float Material: High-Density Polypropylene
  • Foam-filled: Yes
  • Float Dimensions: 48x24x12
  • Float Capacity: 390 pounds

DECKING:

  • Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 37 pounds

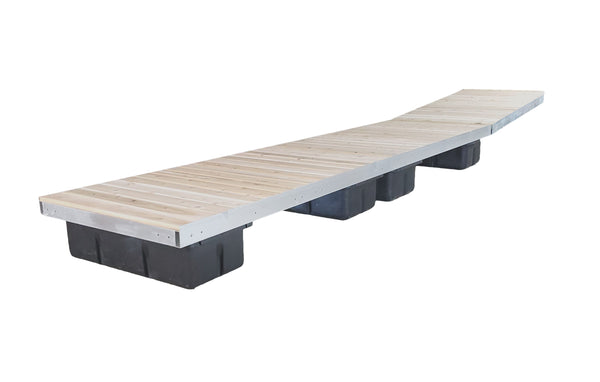

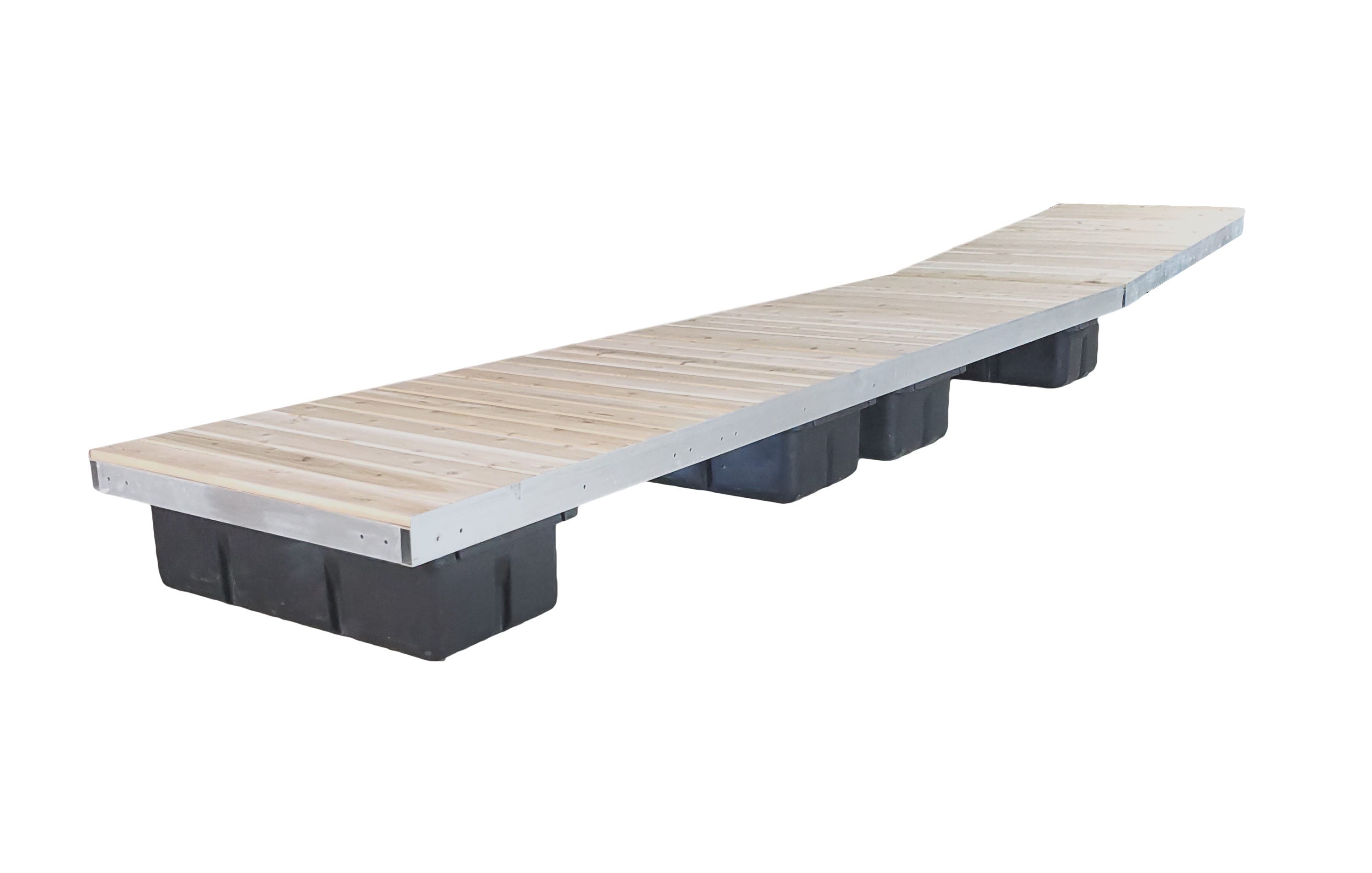

  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds

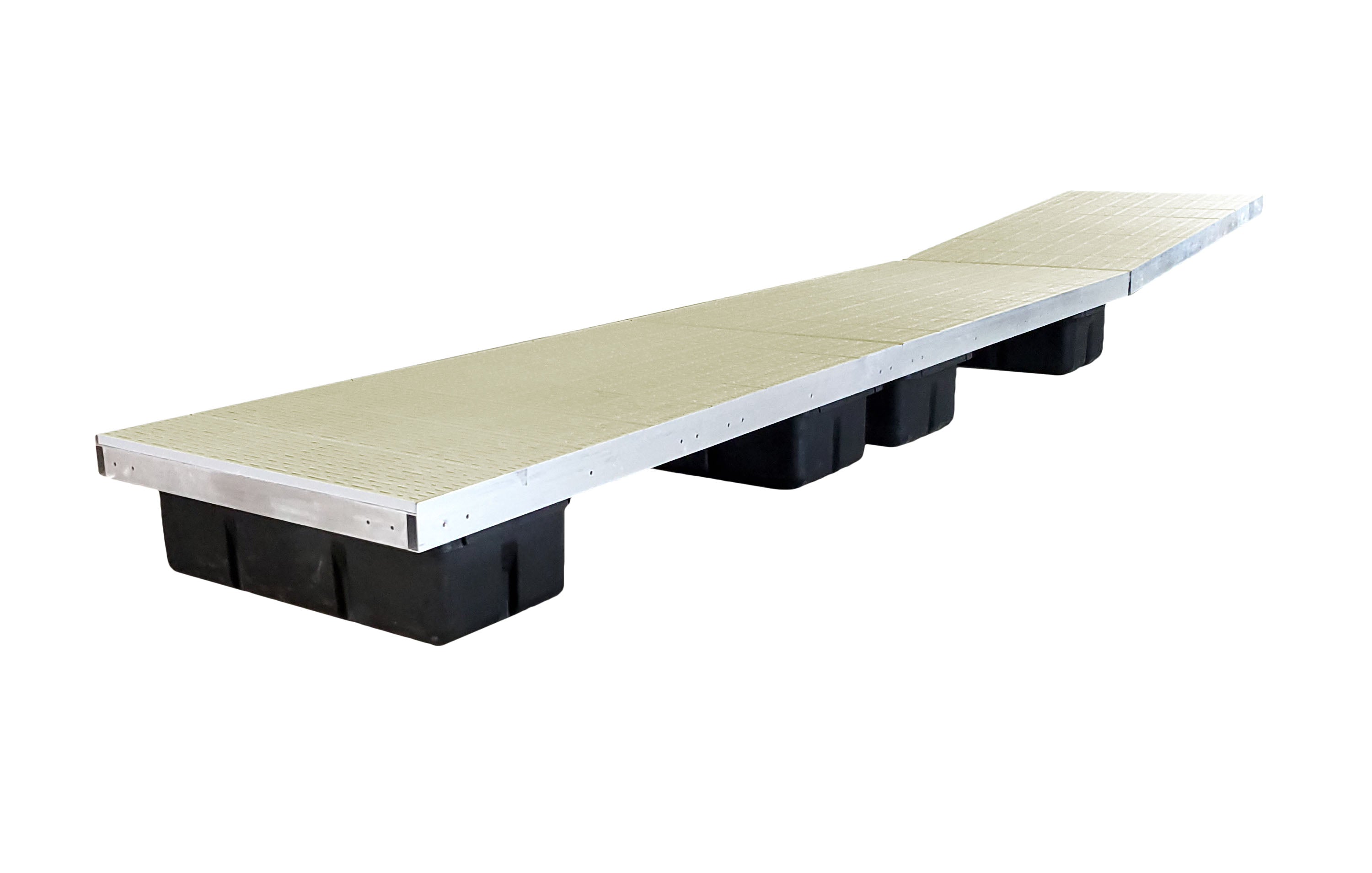

  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds

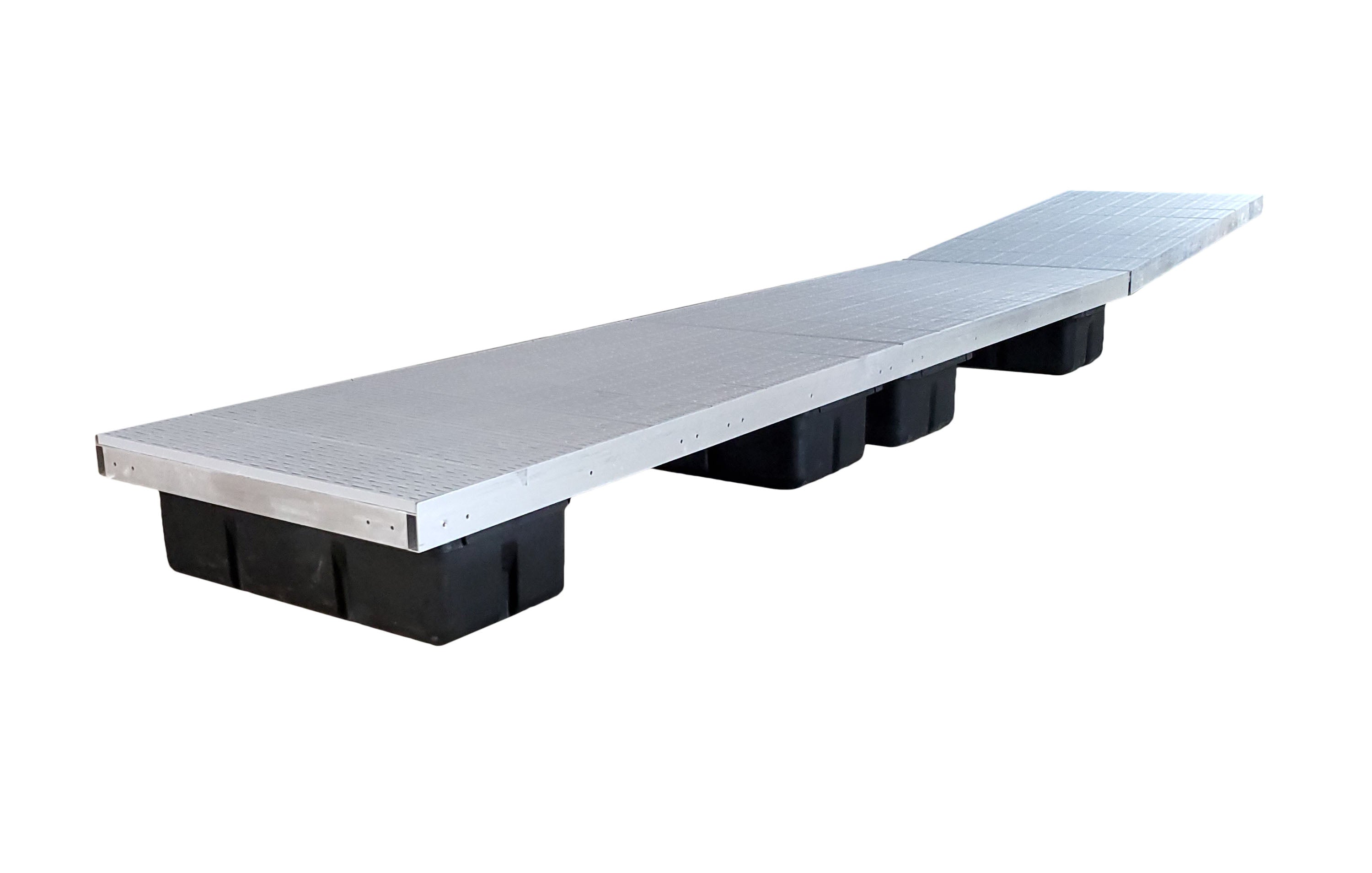

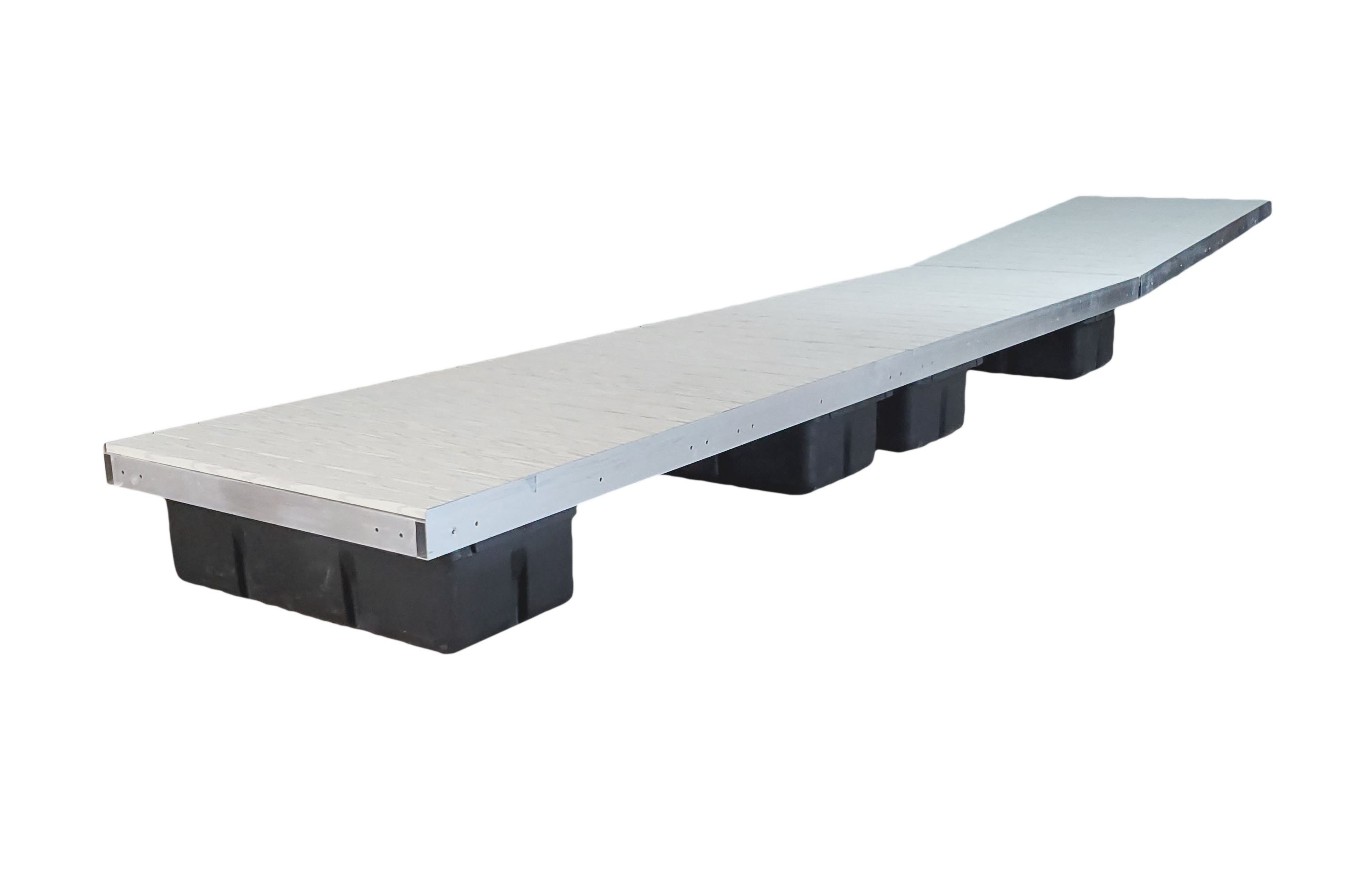

  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Welded Stringers, Powder Coating, and Wood Grain Finish

HINGE:

  • Hinge Material: Aluminum
  • Hinge Dimensions: 48x1 inches
  • Hinge Articulation: 25 degrees

HARDWARE:

  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8" or 1/2"

Features

DOCK FRAMES: Lightweight (57lbs); Low profile (4"
tall, easy watercraft access); No-rust aluminum; Bolt-together sections;
Modular (bolt or hinge one frame to the next); Nests decking (frames in
drop-in decking panels)

FLOATS: Foam filled for leak protection; 780-pound buoyancy rating per platform; Large plastic drums (12" tall); Easy mounting to frame

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

HINGES: Articulates to prevent tension; Large range of articulation (25 degrees); Easy slide assembly

DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with instruction video
and step-by-step PDF; Each Floating Dock package comes with 4 Anchor
Brackets

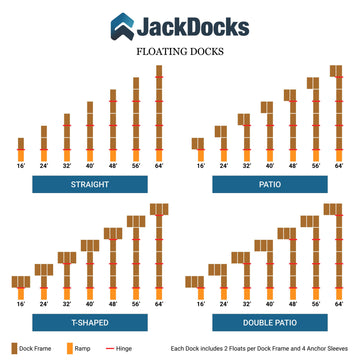

Layout
