$1,683.84 - $8,420.03

The Straight Roll-in Pipe Dock from Patriot Docks is our legacy boat dock—the dock we’ve built, tested, and trusted the longest. Designed for simplicity and reliability, the straight configuration gives you a clean, direct path to the water without overcomplicating your shoreline setup. It's perfect for swimming, boating, or just enjoying a clear walk out over the lake. Built on the tallest and strongest 13″ aluminum truss frames in the residential dock market, this system offers unbeatable durability without the extra weight. Paired with a roll-in galvanized wheel system, the dock moves smoothly over sand, muck, or rock—making install and removal easy, season after season.
Sale price $1,683.84

SKU: 10520
Categories:

Description

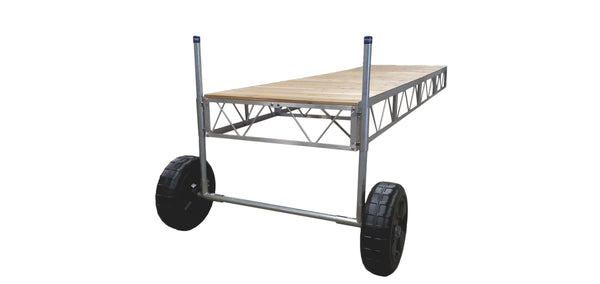

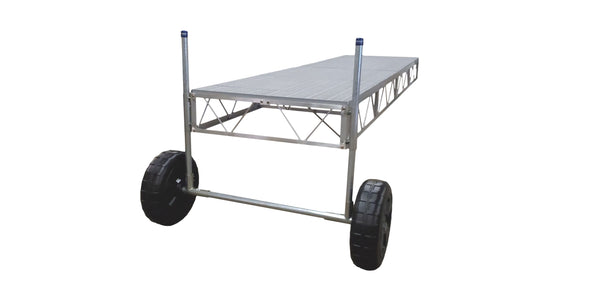

Patriot Docks – Straight Roll-in Pipe Dock

The Straight Roll-in Pipe Dock from Patriot Docks is our legacy boat dock—the dock we’ve built, tested, and trusted the longest. Designed for simplicity and reliability, the straight configuration gives you a clean, direct path to the water without overcomplicating your shoreline setup. It's perfect for swimming, boating, or just enjoying a clear walk out over the lake.

Built on the tallest and strongest 13″ aluminum truss frames in the residential dock market, this system offers unbeatable durability without the extra weight. Paired with a roll-in galvanized wheel system, the dock moves smoothly over sand, muck, or rock—making install and removal easy, season after season.

Top Features

  • Straight configuration – our simplest and most trusted dock layout
  • 13″ tall aluminum truss frames – unmatched strength and longevity
  • Roll-in galvanized pipe supports
  • Tall wheels – navigate all lakebed types with ease
  • Modular bolt-together design – simple to expand or reconfigure
  • Drop-in decking panels – remove for transport, reinsert in seconds
  • Dual-bolt brackets – keep every connection solid and secure

If you’re looking for the best value in shoreline access, this dock delivers. It combines premium materials with a competitive price, giving you a long-lasting system without breaking the bank. The Straight Roll-in Pipe Dock is proof that you don’t need to sacrifice quality to stay within budget.

Patriot Docks are designed in the USA and available in complete standard dock kits—including frames, decking, wheels, supports, and hardware. Want something custom? Our dock specialists are here to help build the perfect dock for your lakefront.

Awesome Docks for the Average Joe.

Specifications

FRAME:

  • Weight per frame: 45 pounds
  • Frame Height: 12 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: 13" Truss
  • Frame Build: Bolts Together
  • Support Span: Every 16 feet

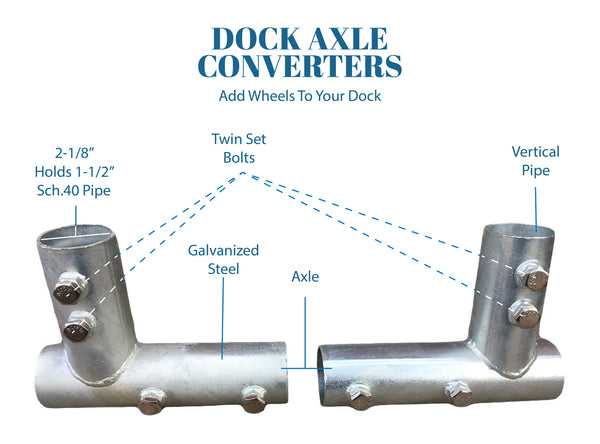

PIPE:

  • Bracket Material: Steel
  • Bracket Adjustment Style: Loosen 1/2 inch Dual Set Bolts and Manually Lift or Lower Frame then Tighten Bolts
  • Bracket Pipe Accommodates 1-1/2" Sch40 Pipe
  • Pipe Material: Galvanized Steel
  • Pipe Size: 1-1/2" ID Sch40 Pipe
  • Pipe Weight Capacity: 1000 pounds/each

DECKING:

  • Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 37 pounds
  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds
  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds
  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Screwed Stringers, Powder Coating, and Wood Grain Finish

WHEEL:

  • Wheel Material: High Density Polypropylene
  • Wheel Diameter: 24 inches

HARDWARE:

  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8" or 1/2"

Features

DOCK FRAMES: Lightweight (45lbs); Strong truss (13"
tall, 5" taller than industry average); No-rust aluminum; Modular (bolt together assembly); Nests decking (frames in drop-in decking panels)

PIPE SUPPORTS: Strong galvanized steel pipes; Dual
set bolt locking for safety; Projects above dock for handle support or solar lighting; Fully manually adjustable; Protective pipe cap; Large foot pad

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

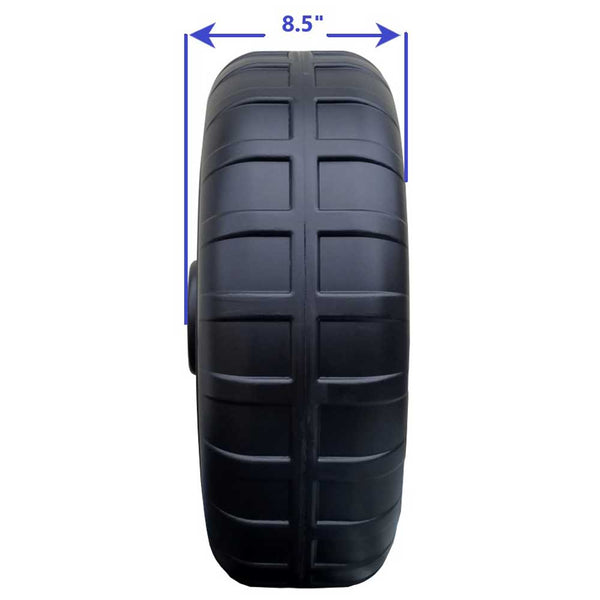

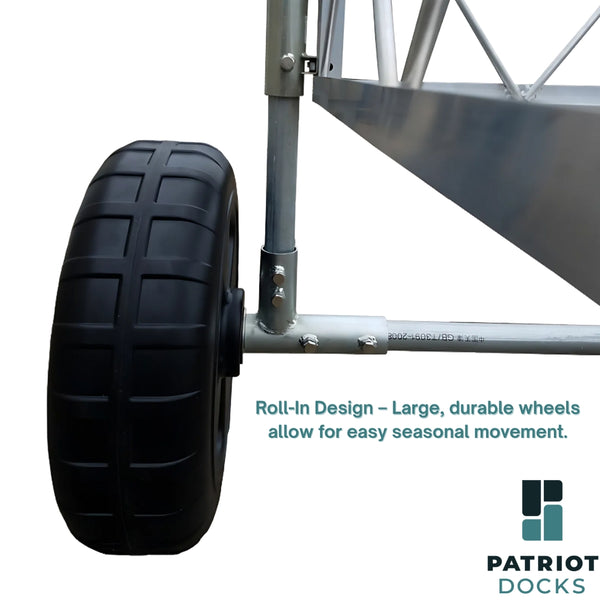

WHEELS: Heavy duty polypropylene; 24" All-terrain;
Sinks and fills with water for stability; Wide 8-inch tread; Moveable to middle or end of dock; Strong full axle

DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with instruction video and step-by-step PDF

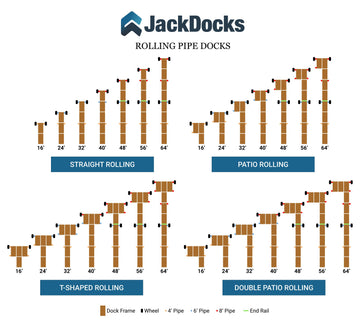

Layout
