$3,739.01 - $12,687.93

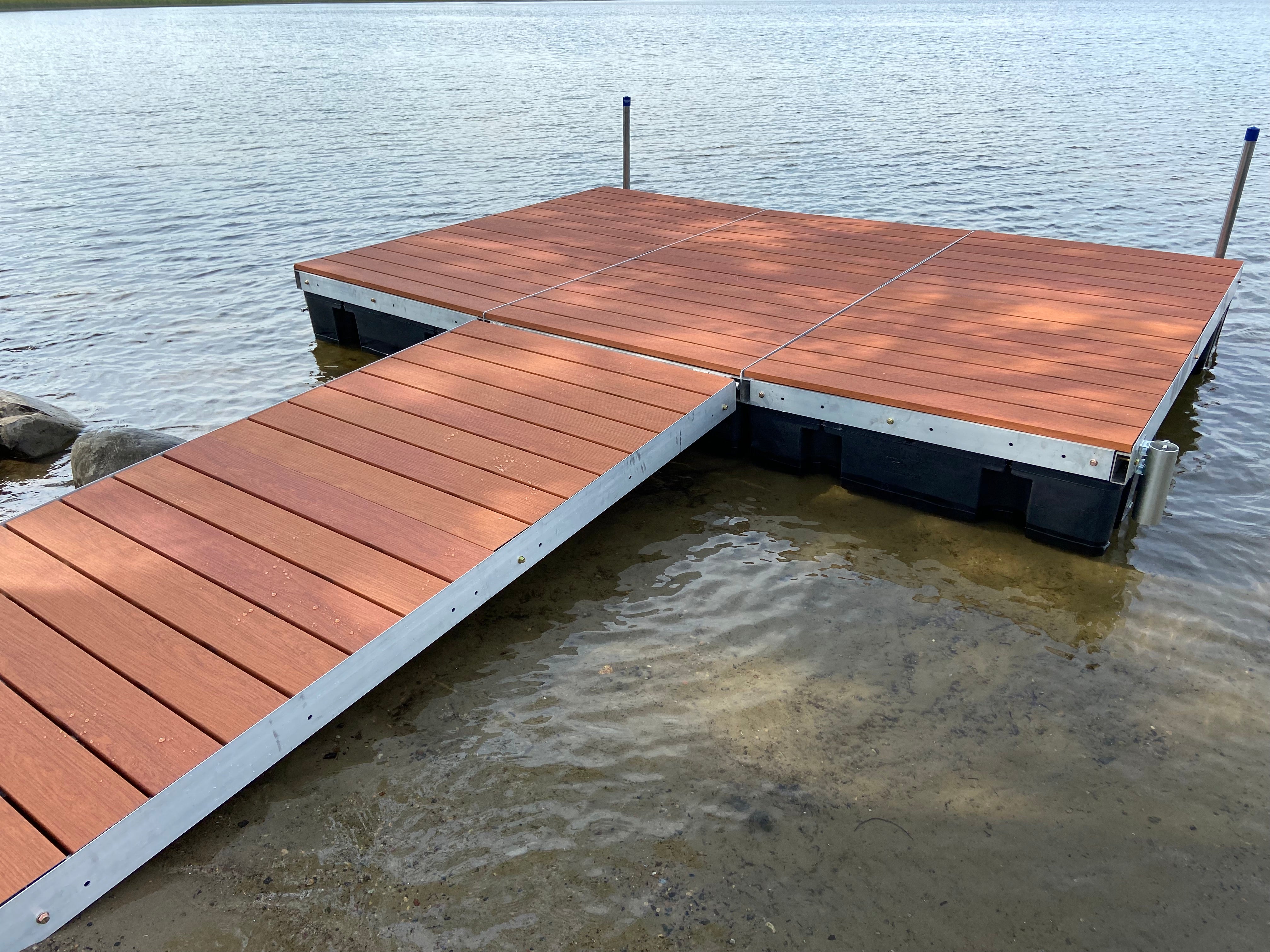

More Space. More Stability. Just as Simple. The Patriot Docks Low Profile Floating Dock – T-Shape combines the proven strength of our aluminum floating dock system with a versatile T-shaped layout—giving you extra stability, more functional surface area, and a natural seating or launch zone perfect for kayaks, lounging, or fishing. With its low-profile design, this system keeps you closer to the water while automatically adapting to fluctuating lake levels. Built with modular aluminum frames, foam-filled floats, and drop-in decking, it’s an easy-to-own solution for deep, muddy, or unstable bottoms where traditional posts won’t work.
Sale price $3,739.01

SKU: D-22420
Categories:

Description

Low Profile Floating Dock – T-Shape

More Space. More Stability. Just as Simple.

The Patriot Docks Low Profile Floating Dock – T-Shape combines the proven strength of our aluminum floating dock system with a versatile T-shaped layout—giving you extra stability, more functional surface area, and a natural seating or launch zone perfect for kayaks, lounging, or fishing.

With its low-profile design, this system keeps you closer to the water while automatically adapting to fluctuating lake levels. Built with modular aluminum frames, foam-filled floats, and drop-in decking, it’s an easy-to-own solution for deep, muddy, or unstable bottoms where traditional posts won’t work.

Why Choose the T-Shape Layout?

  • Wider platform enhances stability in rougher conditions
  • Built-in seating or staging space for gear, people, or docking
  • Creates a defined launch or tie-off area without extending shoreline length

Key Features

  • Low-profile frame allows easy access to kayaks and paddlecraft
  • Foam-filled float drums provide durable, unsinkable support
  • Rust-resistant aluminum construction keeps weight low and life span long

The hinge system between sections lets your dock flex naturally with waves and wind, while the shore ramp gives you a smooth, secure approach from land to water.

What’s Included in the T-Shape Package:

  • 8′ aluminum ramp to the shoreline
  • 4′ x 8′ dock frames
  • Foam-filled 24″ x 48″ x 12″ floats
  • 4′ x 4′ drop-in decking panels
  • (4) Piling sleeves for anchoring
  • Hinges every 16′ to reduce stress and improve flexibility
  • All assembly hardware included

(Anchoring system sold separately for site-specific compatibility.)

Customize It Your Way

Want to expand later or tweak the layout? All Low Profile dock frames work with our DIY Floating Dock Sections, giving you total flexibility as your waterfront needs grow and change.

Strong. Stable. Simple. The Low Profile T-Shape Floating Dock brings added space and functionality without complicating your setup—perfect for recreational users who want more from their dock.

Specifications

FRAME:

  • Weight per frame: 57 pounds
  • Frame Height: 4 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: Low Profile
  • Frame Build: Bolt-together
  • Hinge Span: Every 16 feet

FLOAT:

  • Float Material: High-Density Polypropylene
  • Foam-filled: Yes
  • Float Dimensions: 48x24x12
  • Float Capacity: 390 pounds

STABILITY FLOATS:

  • Float Material: High-Density Polypropylene
  • Foam-filled: No
  • Float Dimensions: 47-1/4" x 13-1/2" x 6-3/4"
  • Float Capacity: 145 pounds

DECKING:

  • Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 37 pounds

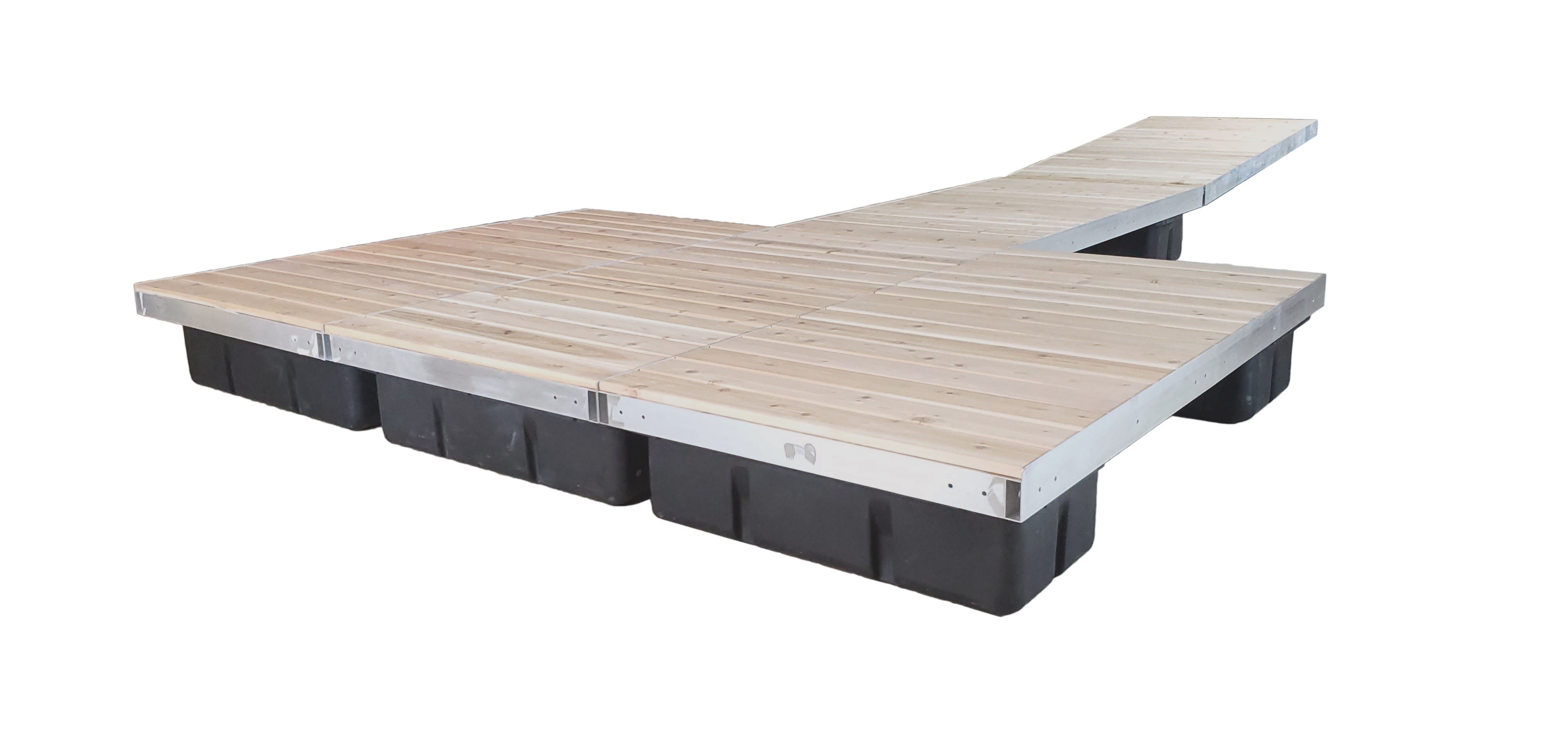

  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds

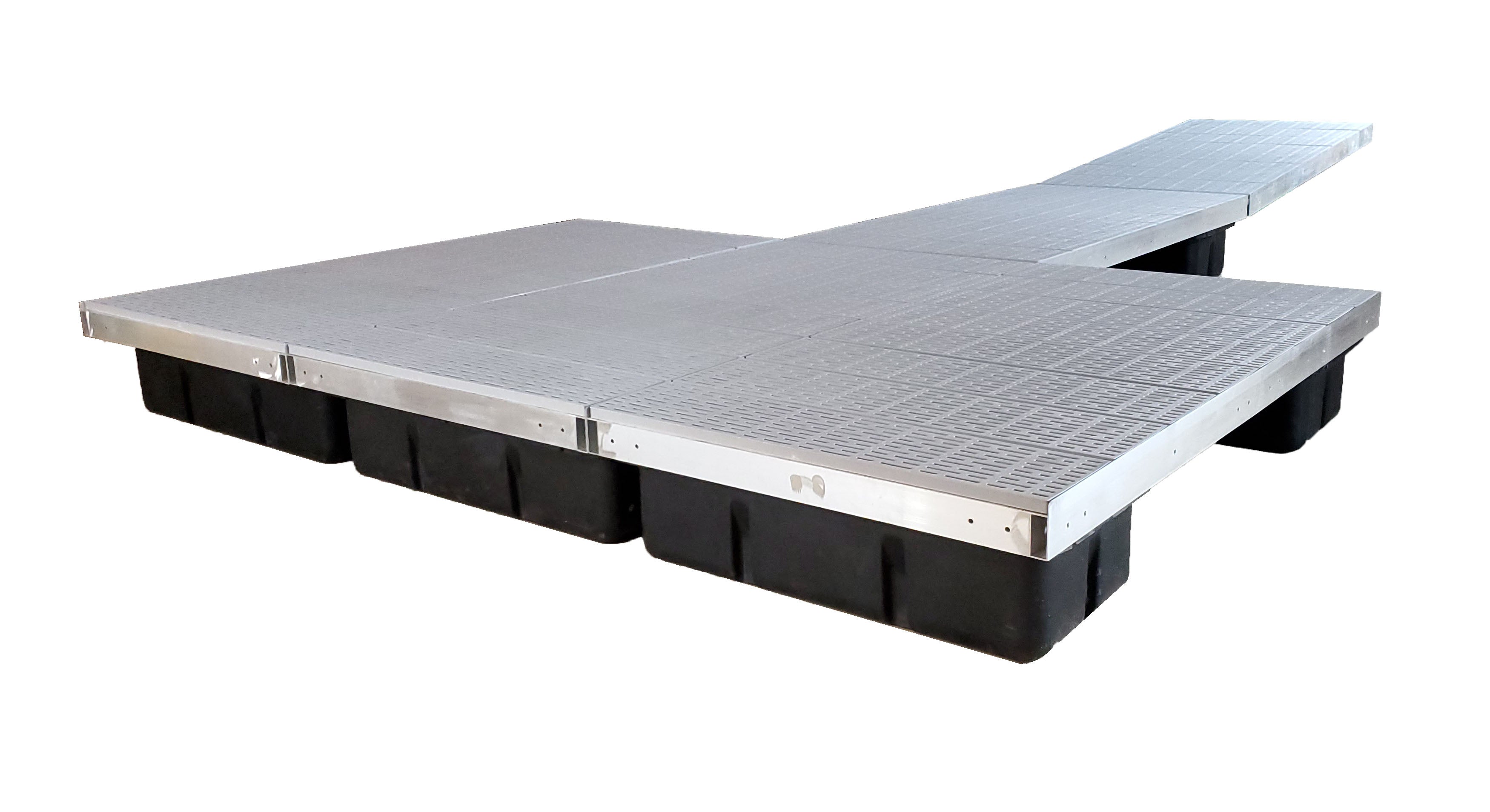

  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds

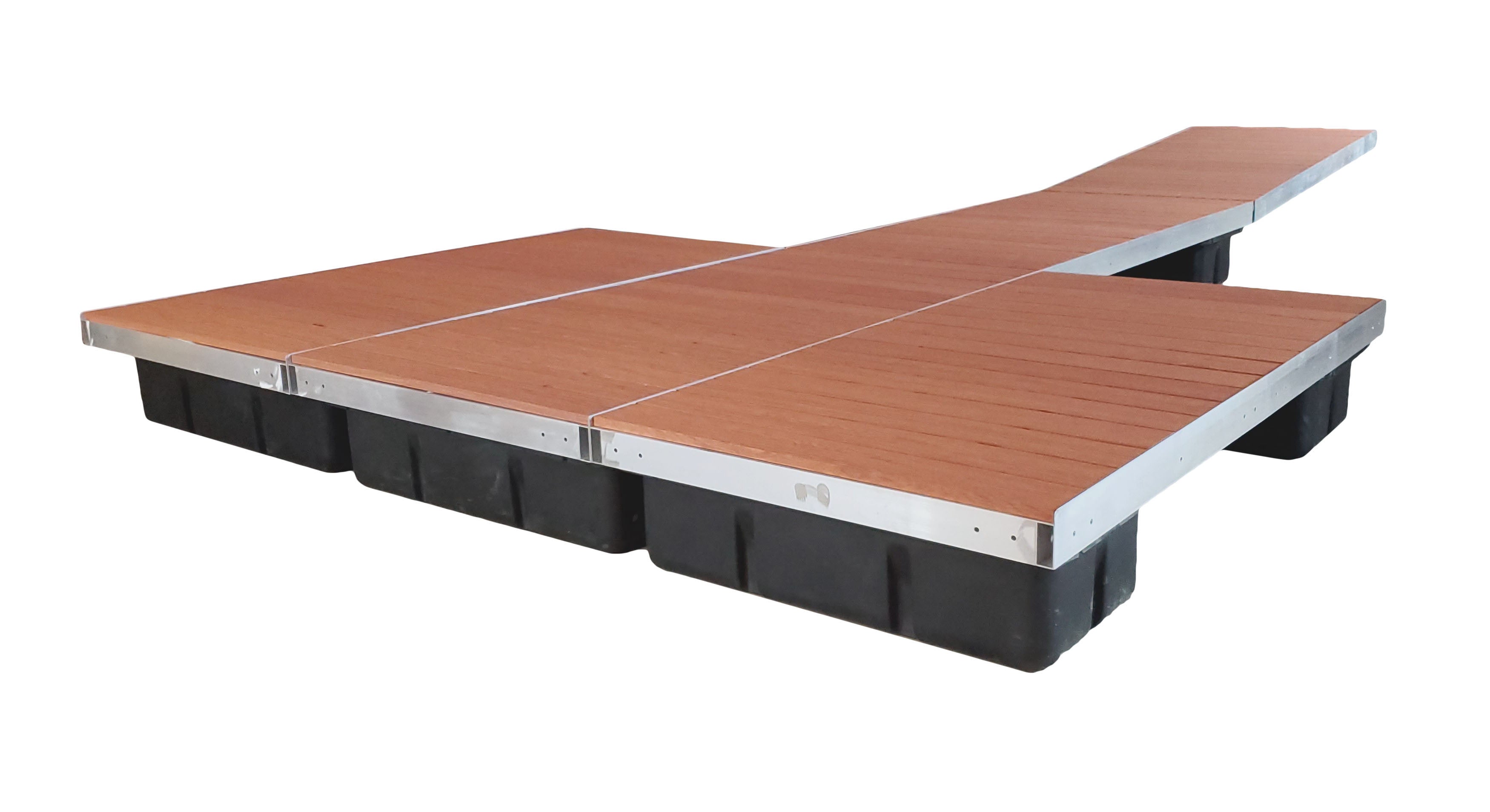

  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Welded Stringers, Powder Coating, and Wood Grain Finish

HINGE:

  • Hinge Material: Aluminum
  • Hinge Dimensions: 48x1 inches
  • Articulation Range: 92″ up (74°) and 48″ down (31°) from Dock Surface

HARDWARE:

  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8" or 1/2"

Features

DOCK FRAMES: Lightweight (57lbs with floats); Low profile (4" tall, easy watercraft access); No-rust aluminum; Bolt-together sections; Modular (bolt or hinge one frame to the next); Nests decking (frames in drop-in decking panels)

FLOATS: Foam filled for leak protection; 780-pound buoyancy rating per platform; Large plastic drums (12" tall); Easy mounting to frame

STABILITY FLOATS: Extra side flotation provides 145
pounds in additional buoyancy rating per float; Plastic surface acts as a bumper; 47-1/4" x 13-1/2" x 6-3/4"

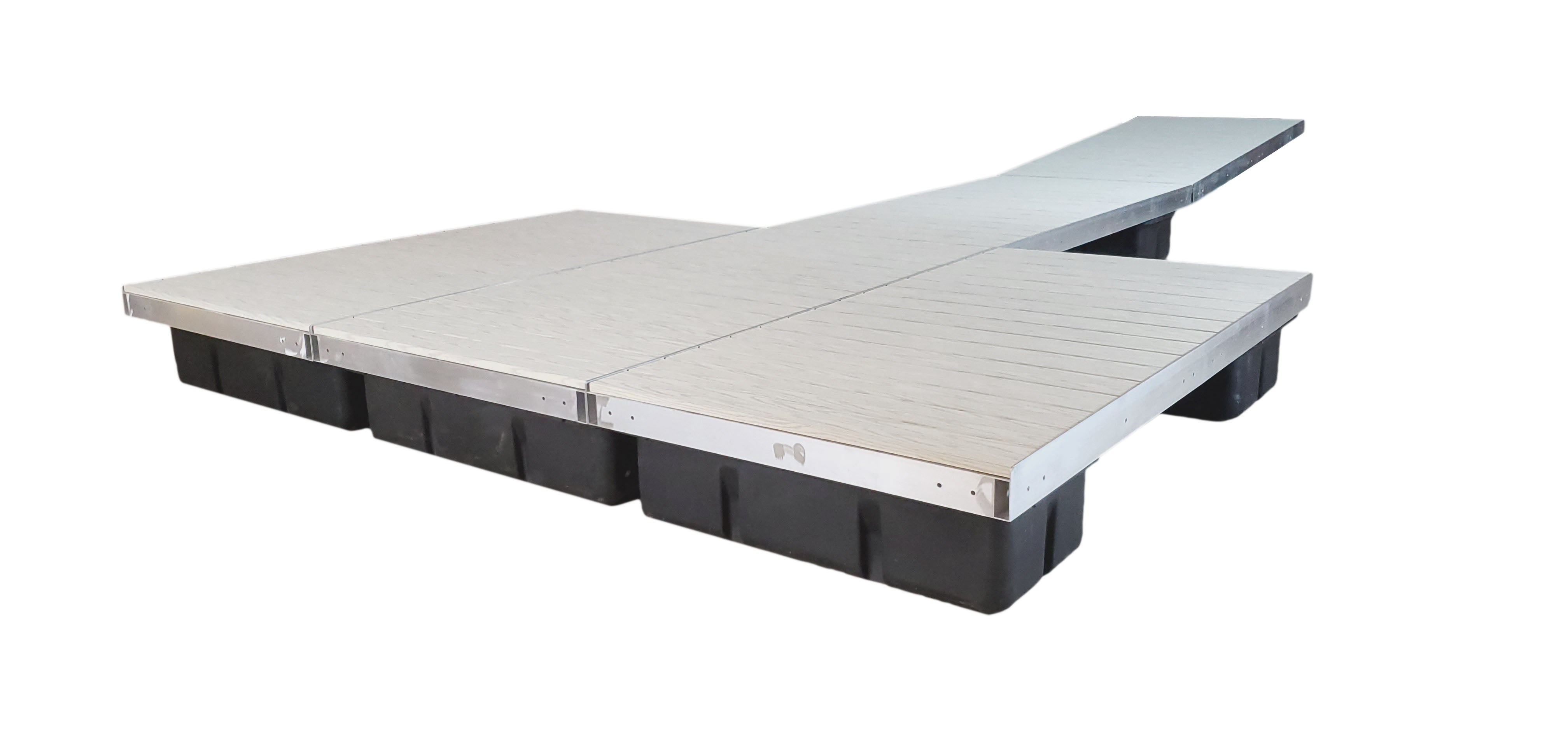

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

HINGES: Articulates to prevent tension; Large range of articulation (Articulation Range for 8ft Ramps to Low-Profile Docks: 92″ up (74°) and 48″ down (31°) from Dock Surface); Easy slide assembly

DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with instruction video and step-by-step PDF; Each Floating Dock package comes with 4 Anchor
Brackets
