Patriot Dock Hinge Kit Components
Replacement Parts for Modular Dock Connection Systems
These Patriot Dock Hinge Components are the individual pieces used in our three hinge systems: the Truss Hinge Kit, Low-Profile Hinge Kit, and the Truss to Low-Profile Hinge Kit. Each part allows you to connect dock frames together at various angles while offering the flexibility to adjust with changing water levels or shoreline slopes.
Whether you're connecting two truss frames, two low-profile frames, or transitioning between the two, these components offer a reliable, modular solution. Perfect for replacements, repairs, or custom configurations.
Available Components:
Truss to LowPRO Hinge Components
These parts connect a Truss frame to a LowPRO Floating Frame.
-

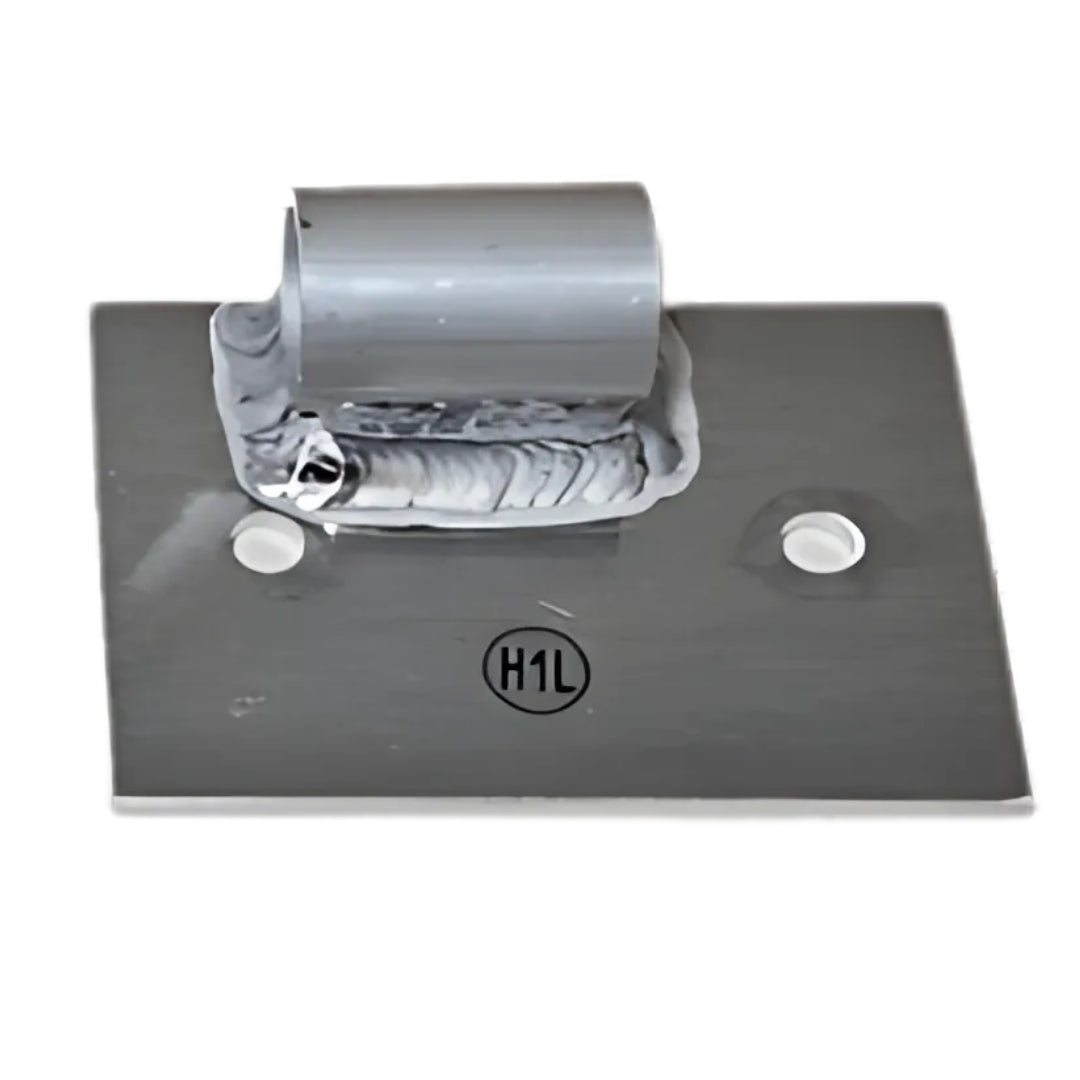

LowPRO Left Bracket – Mounts to the left side of the LowPRO frame.
-

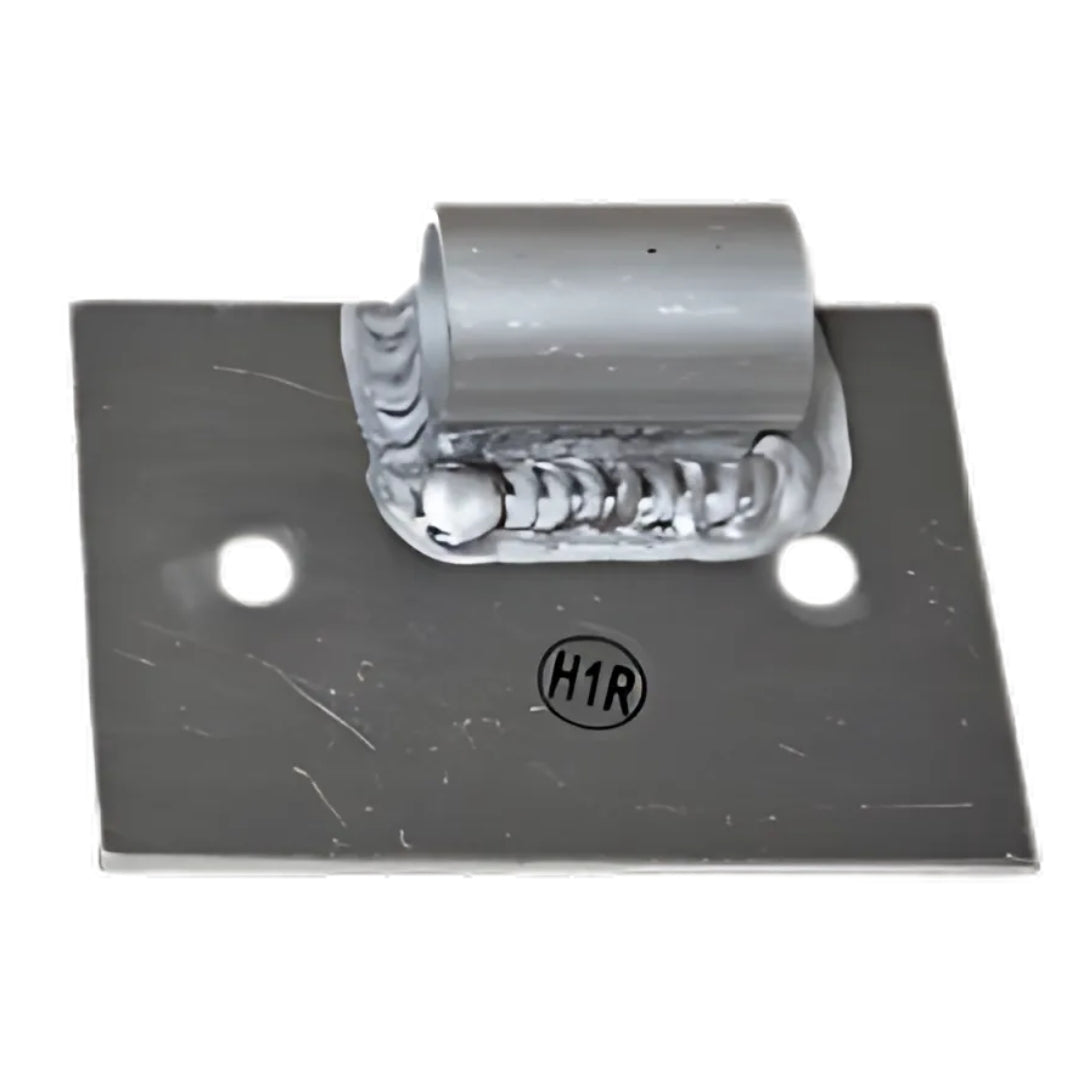

LowPRO Right Bracket – Mounts to the right side of the LowPRO frame.
-

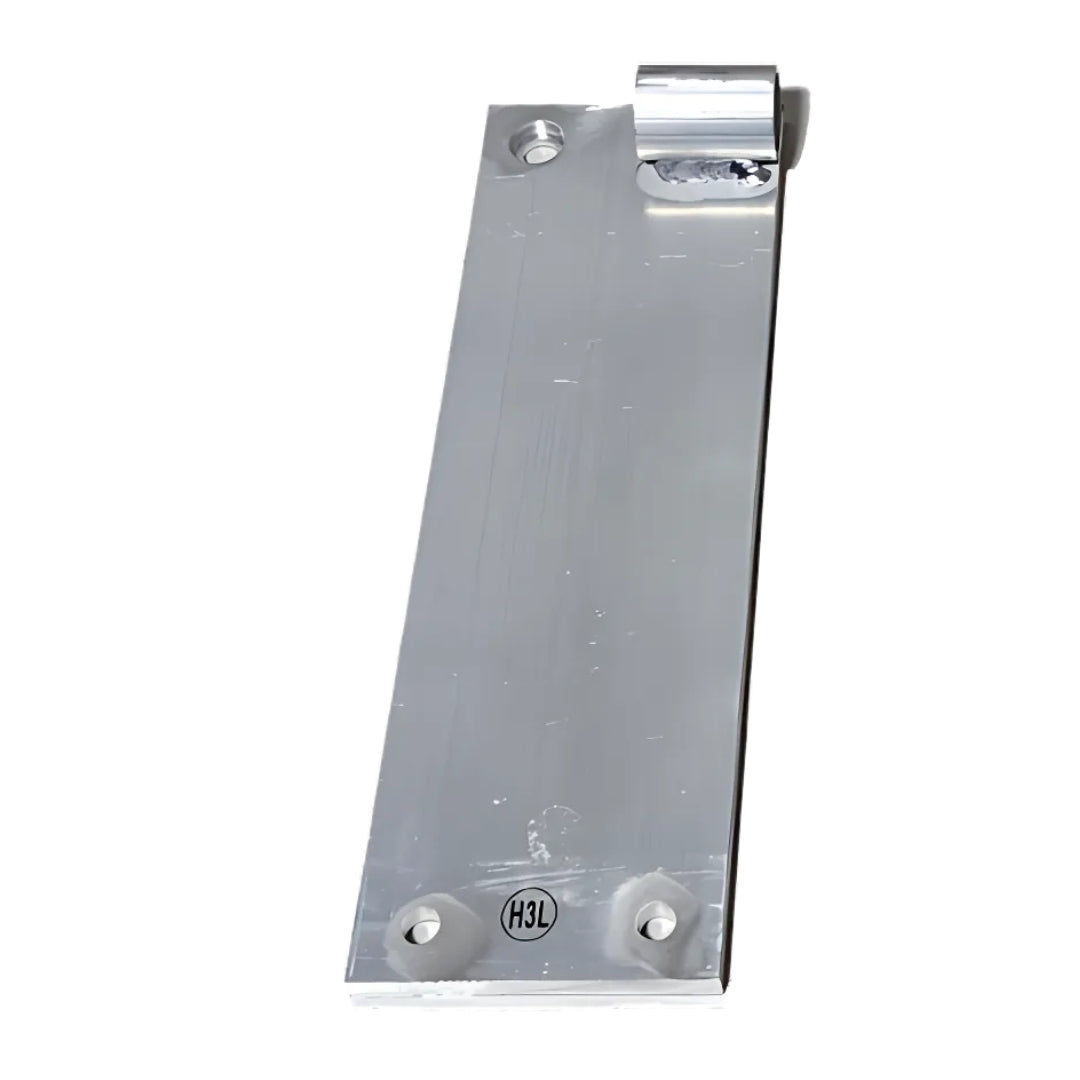

Truss Left Bracket – Mounts to the left side of the Truss frame.
-

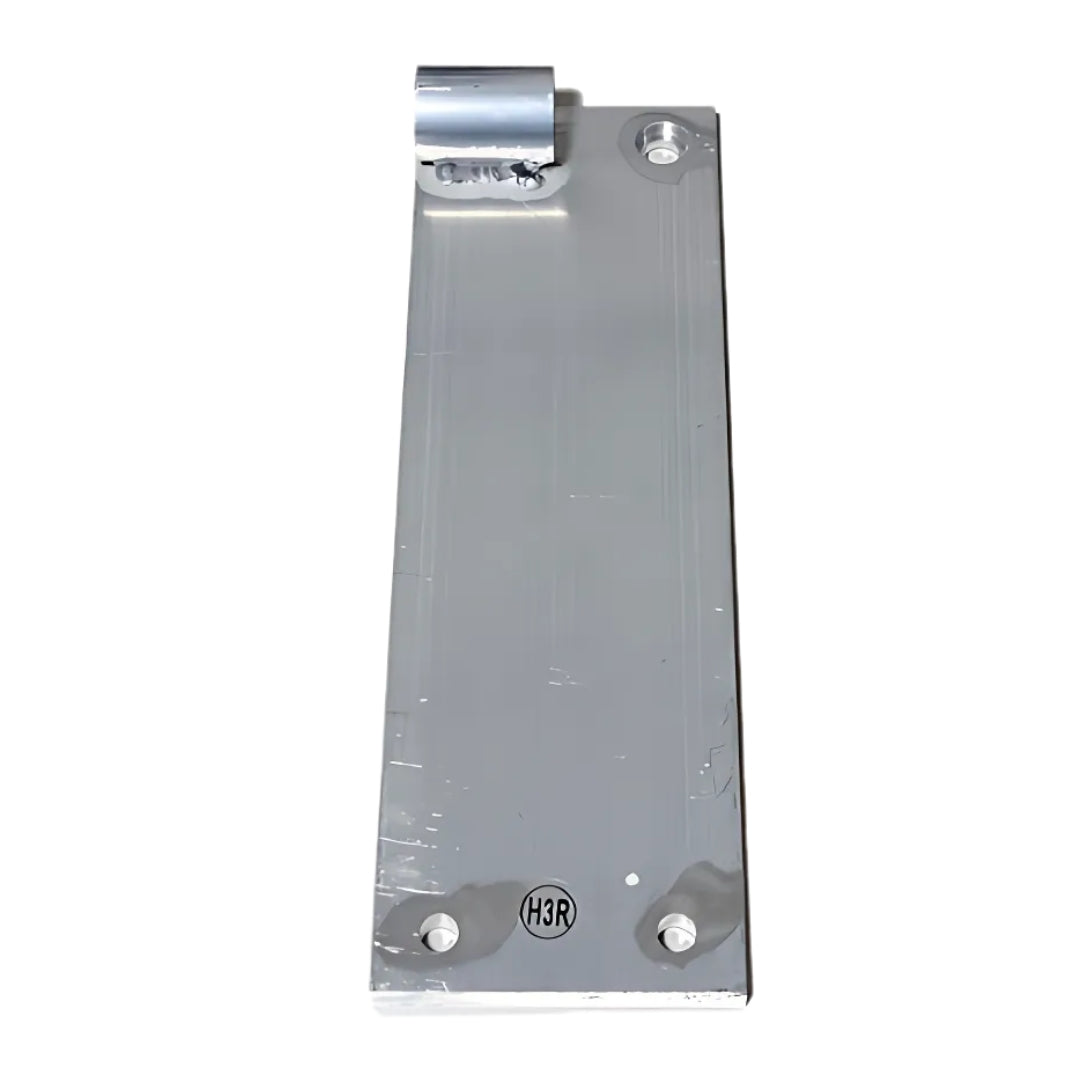

Truss Right Bracket – Mounts to the right side of the Truss frame.
-
Hinge Pipe – Connects all four hinge brackets, allowing pivoting motion.

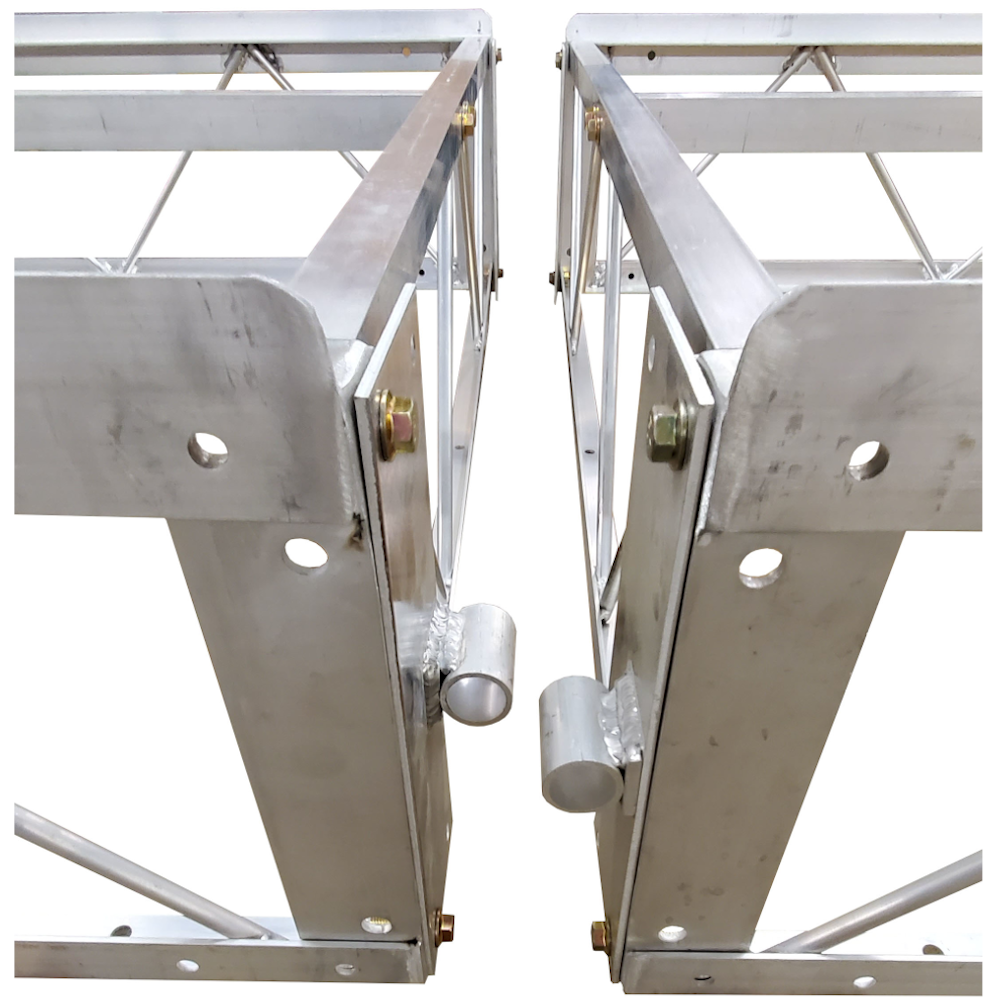

Truss Frame Hinge Components
Used to join two Truss-style frames with angle flexibility.
-
Truss Hinge Bracket – Mounts to the inside corner of the Truss frame for hinged movement.
-

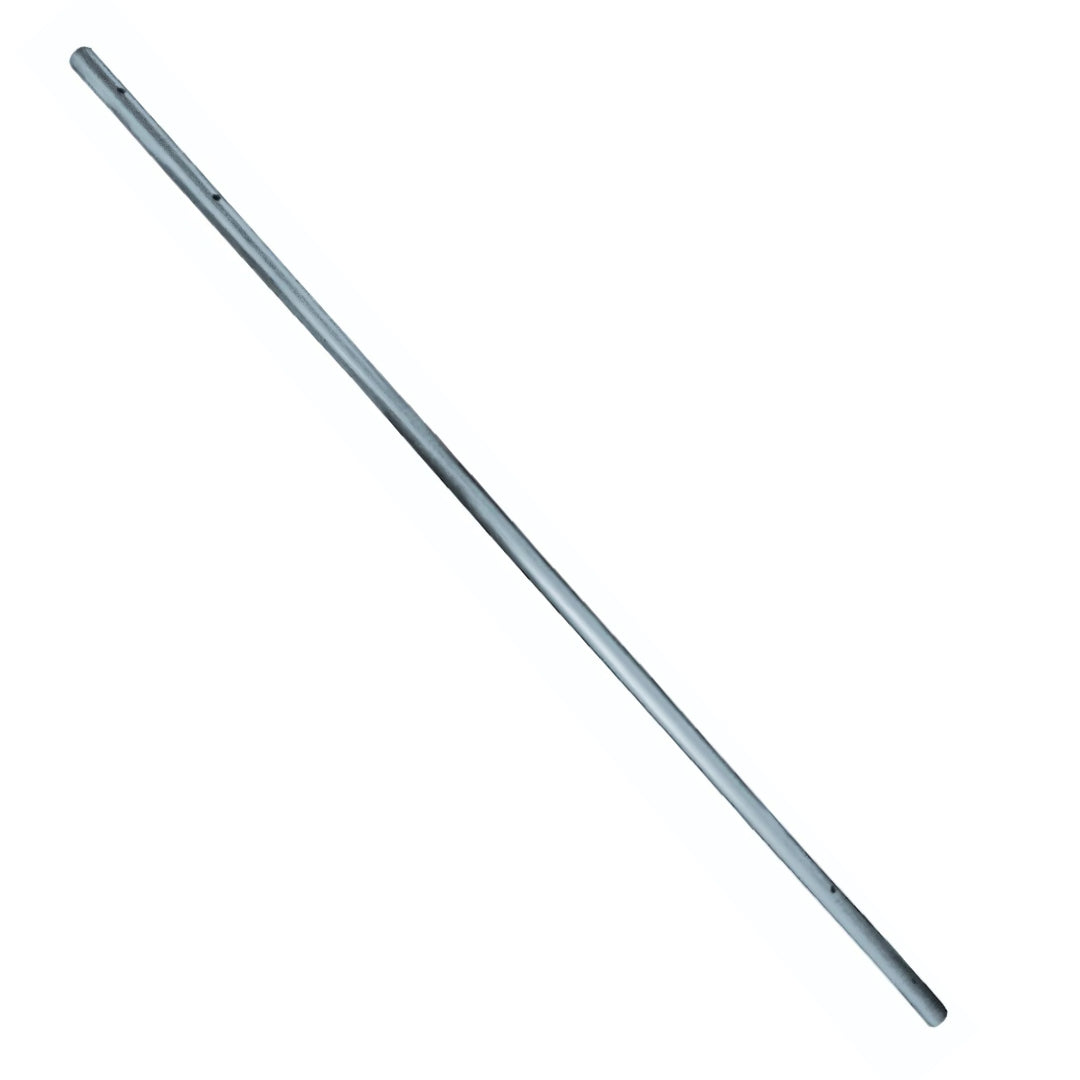

Truss Hinge Pipe – Inserts through both hinge brackets to allow pivoting.

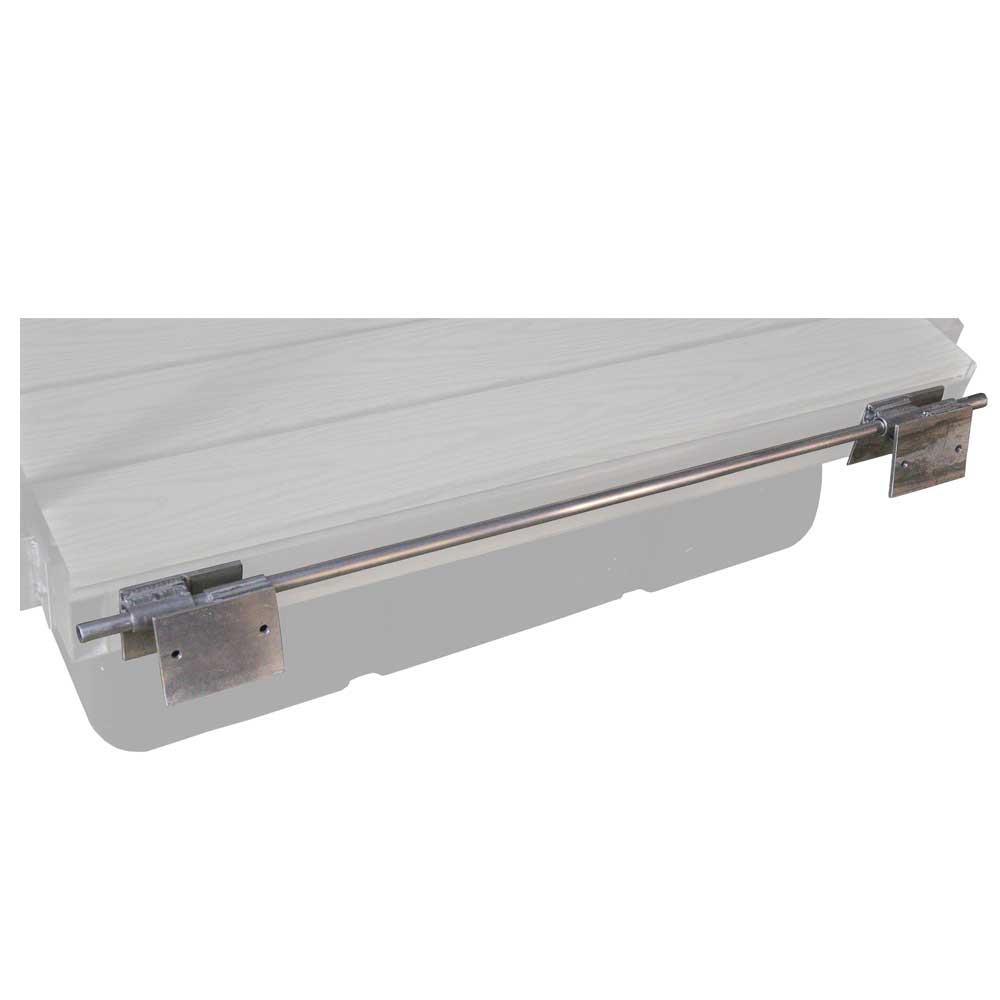

LowPRO Frame Hinge Components
Used for connecting two Low-Profile Floating frames.
-
LowPRO Hinge Bracket – Mounts directly to the LowPRO frame side rail.
-
LowPRO Hinge Pipe – Slides through both brackets for a floating hinge connection.
Note:
These hinge components are universal within their dock type but must be used with compatible Patriot Docks frames. Hinge kits are ideal for transitions between ramps, shoreline sections, floating docks, or uneven terrain.
Need a complete Hinge Kit? Check out our full Truss Hinge Kits, LowPRO Hinge Kits, or Truss to LowPRO Transition Kits for pre-bundled options.
